Raw Materials Processing --- gold ore, copper ore, iron ore, quartz, calcite, feldspar, etc.

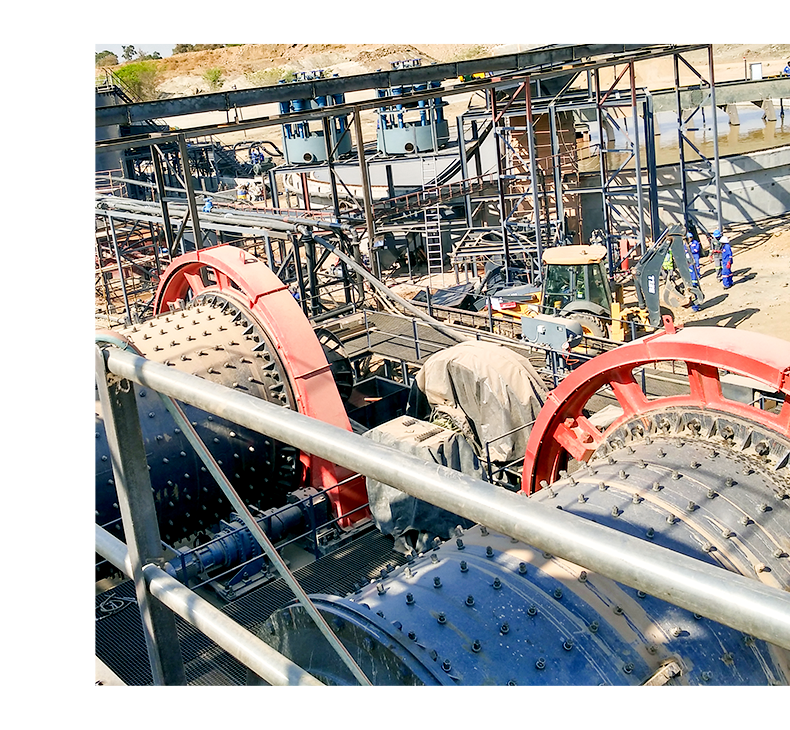

Ball mill is the key milling equipment after material has been crushed. It is widely used in cement, silicate, new construction material, refractory material, chemical fertilizer, ferrous metal and non-ferrous metal as well as ceramics. It is widely applied to dry or wet grinding for ores and rocks.

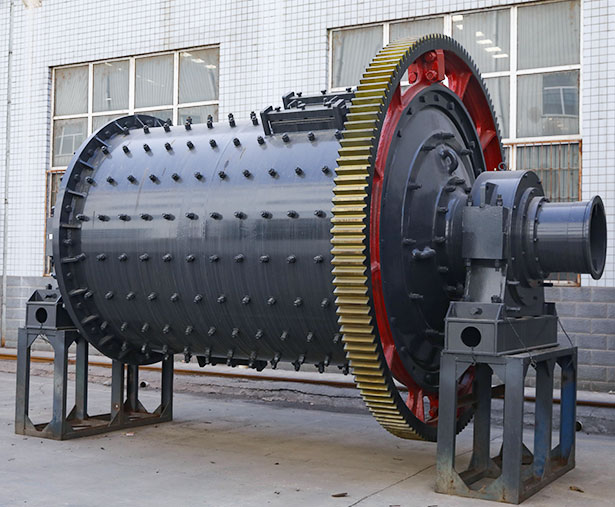

Ball mill consists of a hollow cylindrical shell(the grinding jar) rotating about its axis, usually lined with abrasion-resistant material and partially fille.
As materials are fed into the grinding jaw, the balls are lifted up by the continuously rotating shell and then they cascade down (or drop down on to the feed.
The ball mill can wet or dry grind ores and other materials, such as gold ore, copper ore, iron ore, quartz, calcite, feldspar and more than 200 kinds of ore materials. The output particle size can be adjusted within 0.075-0.4mm. It has the characteristics of high grinding efficiency, fine particle size, strong adaptability and large output.
The lining plate and grinding body are made of alumina ceramics, quartz, SILEX or special materials, and the hard minerals are designed with no iron pollution.
The ultra-fine ball mill and classifier form a closed system, with negative pressure transportation and small dust, reducing harm to the human body.
It adopts full hydraulic operation, which is easy to use and easy to realize automation. Its reliability and lifespan are greatly improved.
We will deliver products timely by contract.We will supply you with installation drawings,specifications and operation manual.We offer lifetime warranty and components for products.
Ball Grinding Mill
Overflow Ball Mill
Wet Grid Ball Mill
Dry Grid Ball Mill
Self Grinding Machine
| Model | Feeding capacity （t/time） |
Shell rotation speed （r/min） |
Reference motor （kw） |
Liner material |
| 600×700 | 0.05 | 50 | 2.2 | Chinaware,silicon,rubber or metal（the related motor power varied as per the different liner materials and grinding materials） |
| 800×600 | 0.075 | 42 | 3 | |
| 900×1200 | 0.2 | 38.5 | 5.5 | |
| 1300×1500 | 0.5 | 33 | 7.5 | |
| 1500×1800 | 1.2 | 28.5 | 11 | |
| 1800×2000 | 1.5 | 24 | 15 | |
| 2600×2800 | 5 | 16.5 | 37 | |
| 3000×3800 | 10 | 14.5 | 57.2 | |
| 3200×4600 | 15 | 13.5 | 75 |
| Model | Feeding capacity （t/time） |
Shell rotation speed （r/min） |
| 600×700 | 0.05 | 50 |
| 800×600 | 0.075 | 42 |
| 900×1200 | 0.2 | 38.5 |
| 1300×1500 | 0.5 | 33 |
| 1500×1800 | 1.2 | 28.5 |
| 1800×2000 | 1.5 | 24 |
| 2600×2800 | 5 | 16.5 |
| 3000×3800 | 10 | 14.5 |
| 3200×4600 | 15 | 13.5 |
| Model | Cylinder | Effective Volume (m³) |
Max.Ball Loading (t) |
Speed (r/min) |
Main Motor (KW) |
|
| Diameter (mm) | Length (mm) | |||||
| MQY-1530 | 1500 | 3000.0 | 4.5 | 8 | 30 | 90 |
| MQY-1545 | 1500 | 4500.0 | 6.7 | 12 | 30 | 132 |
| MQY-1830 | 1830 | 3000.0 | 6.7 | 12 | 26.6 | 130 |
| MQY-1845 | 1830 | 4500.0 | 10.5 | 19 | 26.8 | 180 |
| MQY-2130 | 2100 | 3000.0 | 9.2 | 16 | 23.8 | 210 |
| MQY-2136 | 2100 | 3600.0 | 11 | 20 | 23.8 | 210 |
| MQY-2145 | 2100 | 4500.0 | 13.8 | 25 | 23.8 | 280 |
| MQY-2230 | 2200 | 3000.0 | 10 | 18.5 | 21.3 | 210 |
| MQY-2245 | 2200 | 4500.0 | 15.2 | 28 | 21.3 | 280 |
| MQY-2430 | 2400 | 3000.0 | 12 | 22 | 21.3 | 245 |
| MQY-2436 | 2400 | 3600.0 | 14 | 26 | 21.3 | 280 |
| MQY-2445 | 2400 | 4500.0 | 17.8 | 30 | 21.6 | 320 |
| MQY-2460 | 2400 | 6000.0 | 24 | 44 | 21.7 | 480 |
| MQY-2736 | 2700 | 3600.0 | 18 | 33 | 20.7 | 400 |
| MQY-2740 | 2700 | 4000.0 | 20.6 | 38 | 20.7 | 400 |
| MQY-2745 | 2700 | 4500.0 | 23.2 | 43 | 20.7 | 480 |
| MQY-2750 | 2700 | 5000.0 | 25.8 | 48 | 20.6 | 500 |
| MQY-2760 | 2700 | 6000.0 | 31 | 57 | 20.6 | 630 |
| MQY-3040 | 3000 | 4000.0 | 25.7 | 47 | 19 | 500 |
| MQY-3064 | 3000 | 6400.0 | 40.2 | 74 | 19 | 800 |
| MQY-3245 | 3200 | 4500.0 | 32 | 59 | 18.2 | 630 |
| MQY-3254 | 3200 | 5400.0 | 38 | 73 | 18.2 | 800 |
| MQY-3270 | 3200 | 7000.0 | 50.6 | 93 | 18.2 | 1250 |
| MQY-3645 | 3600 | 4500.0 | 40.8 | 75 | 18 | 1000 |
| MQY-3650 | 3600 | 5000.0 | 46 | 86 | 18 | 1250 |
| MQY-3660 | 3600 | 6000.0 | 54 | 102 | 18 | 1250 |
| MQY-3685 | 3600 | 8500.0 | 79 | 131 | 18 | 1800 |
| MQY-4060 | 4000 | 6000.0 | 70 | 126 | 16.9 | 1500 |
| MQY-4067 | 4000 | 6700.0 | 78 | 136 | 16.9 | 1600 |
| MQY-4361 | 4270 | 6100.0 | 80 | 144 | 15.7 | 1850 |
| MQY-4564 | 4500 | 6400.0 | 95 | 172 | 15.6 | 2000 |
| MQY-5064 | 5030 | 6400.0 | 120 | 216 | 14.4 | 2600 |
| MQY-5083 | 5030 | 8300.0 | 152 | 266 | 14.4 | 3300 |
| MQY-5585 | 5500 | 8500.0 | 187 | 338 | 13.8 | 4500 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Effective Volume (m³) |
Max.Ball Loading (t) |
Main Motor (KW) |
| MQY-1530 | 4.5 | 8 | 90 |
| MQY-1545 | 6.7 | 12 | 132 |
| MQY-1830 | 6.7 | 12 | 130 |
| MQY-1845 | 10.5 | 19 | 180 |
| MQY-2130 | 9.2 | 16 | 210 |
| MQY-2136 | 11 | 20 | 210 |
| MQY-2145 | 13.8 | 25 | 280 |
| MQY-2230 | 10 | 18.5 | 210 |
| MQY-2245 | 15.2 | 28 | 280 |
| MQY-2430 | 12 | 22 | 245 |
| MQY-2436 | 14 | 26 | 280 |
| MQY-2445 | 17.8 | 30 | 320 |
| MQY-2460 | 24 | 44 | 480 |
| MQY-2736 | 18 | 33 | 400 |
| MQY-2740 | 20.6 | 38 | 400 |
| MQY-2745 | 23.2 | 43 | 480 |
| MQY-2750 | 25.8 | 48 | 500 |
| MQY-2760 | 31 | 57 | 630 |
| MQY-3040 | 25.7 | 47 | 500 |
| MQY-3064 | 40.2 | 74 | 800 |
| MQY-3245 | 32 | 59 | 630 |
| MQY-3254 | 38 | 73 | 800 |
| MQY-3270 | 50.6 | 93 | 1250 |
| MQY-3645 | 40.8 | 75 | 1000 |
| MQY-3650 | 46 | 86 | 1250 |
| MQY-3660 | 54 | 102 | 1250 |
| MQY-3685 | 79 | 131 | 1800 |
| MQY-4060 | 70 | 126 | 1500 |
| MQY-4067 | 78 | 136 | 1600 |
| MQY-4361 | 80 | 144 | 1850 |
| MQY-4564 | 95 | 172 | 2000 |
| MQY-5064 | 120 | 216 | 2600 |
| MQY-5083 | 152 | 266 | 3300 |
| MQY-5585 | 187 | 338 | 4500 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Cylinder | Effective Volume (m³) |
Max.Ball Loading (t) |
Speed (r/min) |
Main Motor (KW) |
|
| Diameter (mm) | Length (mm) | |||||
| MQS-1530 | 1500 | 3000 | 4.5 | 9 | 30 | 110 |
| MQS-1545 | 1500 | 4500 | 6.7 | 14 | 29.6 | 155 |
| MQS-1830 | 1830 | 3000 | 6.7 | 14 | 26.6 | 155 |
| MQS-1845 | 1830 | 4500 | 10.5 | 20 | 26.8 | 210 |
| MQS-2130 | 2100 | 3000 | 8.8 | 18 | 23.8 | 210 |
| MQS-2136 | 2100 | 3600 | 11 | 22.5 | 23.8 | 245 |
| MQS-2145 | 2100 | 4500 | 13.8 | 28 | 23.8 | 280 |
| MQS-2230 | 2200 | 3000 | 10 | 20 | 21.3 | 210 |
| MQS-2245 | 2200 | 4500 | 15.2 | 30.5 | 21.4 | 320 |
| MQS-2430 | 2400 | 3000 | 12 | 25 | 21.3 | 280 |
| MQS-2436 | 2400 | 3600 | 14 | 29 | 21.4 | 320 |
| MQS-2445 | 2400 | 4500 | 17.8 | 37 | 21.4 | 380 |
| MQS-2470 | 2400 | 7000 | 28 | 58 | 21.5 | 480 |
| MQS-2736 | 2700 | 3600 | 18 | 38 | 20.7 | 400 |
| MQS-2740 | 2700 | 4000 | 20.6 | 43 | 20.7 | 450 |
| MQS-2745 | 2700 | 4500 | 23.2 | 48 | 20.7 | 480 |
| MQS-2750 | 2700 | 5000 | 25.8 | 54 | 20.6 | 560~630 |
| MQS-2760 | 2700 | 6000 | 31 | 65 | 20.6 | 630~710 |
| MQS-3040 | 3000 | 4000 | 25.7 | 54 | 19 | 560~630 |
| MQS-3064 | 3000 | 6400 | 40.2 | 84 | 19 | 1000 |
| MQS-3230 | 3200 | 3000 | 21.8 | 46 | 18.2 | 500 |
| MQS-3236 | 3200 | 3600 | 26.2 | 56 | 18.2 | 630 |
| MQS-3245 | 3200 | 4500 | 32 | 65 | 18.2 | 800 |
| MQS-3254 | 3200 | 5400 | 38 | 80 | 18.2 | 1000 |
| MQS-3640 | 3600 | 4000 | 36 | 75 | 18 | 1000 |
| MQS-3645 | 3600 | 4500 | 40.8 | 88 | 18 | 1250 |
| MQS-3650 | 3600 | 5000 | 46 | 96 | 18 | 1400 |
| MQS-3660 | 3600 | 6000 | 54 | 117 | 18 | 1400~1600 |
| MQS-4050 | 4000 | 5000 | 58 | 121 | 16.9 | 1500 |
| MQS-4060 | 4000 | 6000 | 70 | 146 | 16.9 | 1800 |
| MQS-4560 | 4500 | 6000 | 87 | 182 | 15.6 | 2300 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Effective Volume (m³) |
Max.Ball Loading (t) |
Speed (r/min) |
| MQS-1530 | 4.5 | 9 | 30 |
| MQS-1545 | 6.7 | 14 | 29.6 |
| MQS-1830 | 6.7 | 14 | 26.6 |
| MQS-1845 | 10.5 | 20 | 26.8 |
| MQS-2130 | 8.8 | 18 | 23.8 |
| MQS-2136 | 11 | 22.5 | 23.8 |
| MQS-2145 | 13.8 | 28 | 23.8 |
| MQS-2230 | 10 | 20 | 21.3 |
| MQS-2245 | 15.2 | 30.5 | 21.4 |
| MQS-2430 | 12 | 25 | 21.3 |
| MQS-2436 | 14 | 29 | 21.4 |
| MQS-2445 | 17.8 | 37 | 21.4 |
| MQS-2470 | 28 | 58 | 21.5 |
| MQS-2736 | 18 | 38 | 20.7 |
| MQS-2740 | 20.6 | 43 | 20.7 |
| MQS-2745 | 23.2 | 48 | 20.7 |
| MQS-2750 | 25.8 | 54 | 20.6 |
| MQS-2760 | 31 | 65 | 20.6 |
| MQS-3040 | 25.7 | 54 | 19 |
| MQS-3064 | 40.2 | 84 | 19 |
| MQS-3230 | 21.8 | 46 | 18.2 |
| MQS-3236 | 26.2 | 56 | 18.2 |
| MQS-3245 | 32 | 65 | 18.2 |
| MQS-3254 | 38 | 80 | 18.2 |
| MQS-3640 | 36 | 75 | 18 |
| MQS-3645 | 40.8 | 88 | 18 |
| MQS-3650 | 46 | 96 | 18 |
| MQS-3660 | 54 | 117 | 18 |
| MQS-4050 | 58 | 121 | 16.9 |
| MQS-4060 | 70 | 146 | 16.9 |
| MQS-4560 | 87 | 182 | 15.6 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Cylinder | Effective Volume (m³) |
Max.Ball Loading (t) |
Speed (r/min) |
Main Motor (KW) |
|
| Diameter (mm) | Length (mm) | |||||
| MQG-1557 | 1500 | 5700 | 8.5 | 12 | 28 | 130 |
| MQG-1564 | 1500 | 6400 | 9.6 | 13 | 28 | 155 |
| MQG-1864 | 1830 | 6400 | 15 | 20 | 23.8 | 210 |
| MQG-1870 | 1830 | 7000 | 16 | 22 | 23.8 | 245 |
| MQG-1880 | 1830 | 8000 | 18.8 | 26 | 23.8 | 280 |
| MQG-2170 | 2100 | 7000 | 22 | 30 | 24.1 | 320 |
| MQG-2175 | 2100 | 7500 | 23.5 | 33 | 24.1 | 355 |
| MQG-2265 | 2200 | 6500 | 22 | 35 | 21.7 | 380 |
| MQG-2270 | 2200 | 7000 | 23.8 | 38 | 21.7 | 380 |
| MQG-2275 | 2200 | 7500 | 25.5 | 42 | 21.7 | 450 |
| MQG-2470 | 2400 | 7000 | 28 | 52 | 21.7 | 570 |
| MQG-2480 | 2400 | 8000 | 32 | 60 | 21.5 | 630 |
| MQG-2750 | 2700 | 5000 | 25.8 | 54 | 20.7 | 630 |
| MQG-2760 | 2700 | 6000 | 31 | 65 | 20.6 | 710 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Effective Volume (m³) |
Max.Ball Loading (t) |
Speed (r/min) |
| MQG-1557 | 8.5 | 12 | 28 |
| MQG-1564 | 9.6 | 13 | 28 |
| MQG-1864 | 15 | 20 | 23.8 |
| MQG-1870 | 16 | 22 | 23.8 |
| MQG-1880 | 18.8 | 26 | 23.8 |
| MQG-2170 | 22 | 30 | 24.1 |
| MQG-2175 | 23.5 | 33 | 24.1 |
| MQG-2265 | 22 | 35 | 21.7 |
| MQG-2270 | 23.8 | 38 | 21.7 |
| MQG-2275 | 25.5 | 42 | 21.7 |
| MQG-2470 | 28 | 52 | 21.7 |
| MQG-2480 | 32 | 60 | 21.5 |
| MQG-2750 | 25.8 | 54 | 20.7 |
| MQG-2760 | 31 | 65 | 20.6 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Cylinder | Effective Volume (m³) |
Speed (r/min) |
Main Motor (KW) |
|
| Diameter (mm) | Length (mm) | ||||
| MZ-2410 | 2400 | 1000 | 4.5 | 22 | 55 |
| MZ-3212 | 3200 | 1200 | 9.2 | 18.2 | 160 |
| MZ-4014 | 4000 | 1400 | 16.6 | 17.6 | 245 |
| MZ-5518 | 5500 | 1800 | 34.6 | 15 | 800 |
| MZ-6433 | 6400 | 3300 | 107 | 12.8 | 2000 |
| MZ-6724 | 6700 | 2400 | 80.5 | 12.5 | 2000 |
| MZ-7525 | 7500 | 2500 | 107 | 11.4 | 2500 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Effective Volume (m³) |
Speed (r/min) |
Main Motor (KW) |
| MZ-2410 | 4.5 | 22 | 55 |
| MZ-3212 | 9.2 | 18.2 | 160 |
| MZ-4014 | 16.6 | 17.6 | 245 |
| MZ-5518 | 34.6 | 15 | 800 |
| MZ-6433 | 107 | 12.8 | 2000 |
| MZ-6724 | 80.5 | 12.5 | 2000 |
| MZ-7525 | 107 | 11.4 | 2500 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
