Applied materials: various rocks, ores, granite, basalt, limestone, marble, river pebbles, cobbles, bluestone, gangue, dolomite, calcite, quartzite, etc.

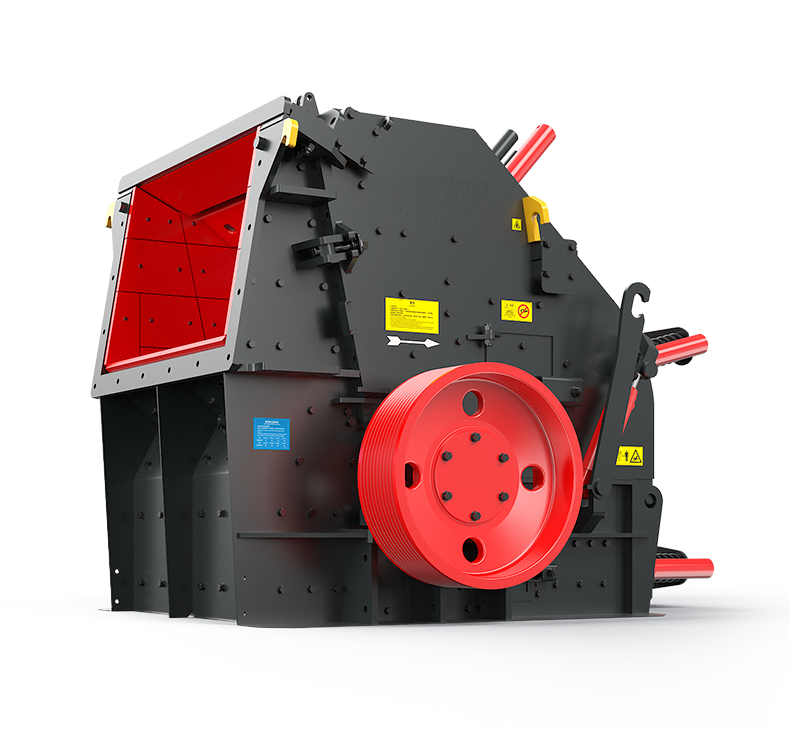

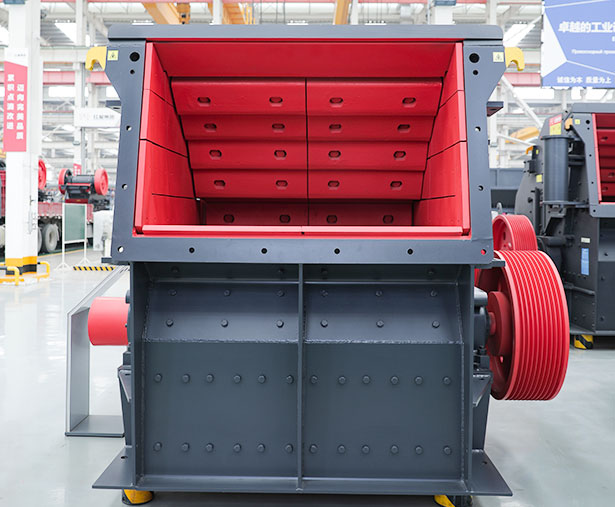

CI series impact crusher integrates the current domestic and international excellent impact crushing technology, optimizing the rotor and crushing cavity type according to different applications. new high wear-resistant materials are used, and the equipment performance and processing capacity are greatly improved.
The rugged heavy-duty rotor structure of the CI series impact crusher increases equipment throughput and crushing ratio. The high quality welded construction ensures that the machine can withstand the most impact and achieve good crushing results. The CI1213 impact crusher is a hot sale model of the CI series. Its production capacity is 100-280t/h, the power is 200kw, the rotor specification is φ1200*1300mm, and the feed size can meet the 300mm feeding material.
The precise design of the rotor and cavity type, speed and power are reasonably matched to meet the different applications of coarse crushing, medium and fine crushing and material recovery.
The sturdy heavy-duty rotor structure improves the equipment handling capacity and crushing ratio; the high-quality welding structure ensures that the machine can withstand the maximum impact and obtain a good crushing effect.
The ship plate hammer, firm locking structure, has a good impact resistance, anti-wear properties and maintain a stable discharge particle size.
We will deliver products timely by contract.We will supply you with installation drawings,specifications and operation manual.We offer lifetime warranty and components for products.
| Model | Maximum Feeding Size (mm) | Power (kw) | Capacity (t/h) | Dimensions(L×W×H)(mm) |
| CI1110 | 250 | 160 | 60-210 | 2826×2087×2285 |
| CI1213 | 300 | 200 | 80-280 | 2903×2530×2411 |
| CI1316 | 300 | 250 | 100-350 | 3320×2770×2535 |
| Cl1321 | 300 | 315 | 130-430 | 2955×3285×2585 |
| Cl1521 | 350 | 2×(200-250) | 200-600 | 3450×3620×2770 |
| Cl1524 | 350 | 2×315 | 240-700 | 3450×3925×2855 |
| Cl1630 | 400 | 710-800 | 300-900 | 3693×4520×3173 |
| Model | Maximum Feeding Size (mm) | Power (kw) | Capacity (t/h) | Dimensions(L×W×H)(mm) |
| CI1313 | 600 | 200 | 100-480 | 2972×2560×2937 |
| CI1415 | 600 | 250 | 120-600 | 2985×2790×3068 |
| CI1620 | 800 | 2×(200-250) | 220-900 | 4261×3480×3780 |
| CI2023 | 800 | 2×500 | 400-2000 | 5151×4424×4712 |
| Model | Maximum Feeding Size (mm) | Capacity(t/h) |
| CI1110 | 250 | 60-210 |
| CI1213 | 300 | 80-280 |
| CI1316 | 300 | 100-350 |
| Cl1321 | 300 | 130-430 |
| Cl1521 | 350 | 200-600 |
| Cl1524 | 350 | 240-700 |
| Cl1630 | 400 | 300-900 |
| Model | Maximum Feeding Size (mm) | Capacity(t/h) |
| CI1313 | 600 | 100-480 |
| CI1415 | 600 | 120-600 |
| CI1620 | 800 | 220-900 |
| CI2023 | 800 | 200-2000 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
