Applied materials: various rocks, ores, granite, basalt, limestone, marble, river pebbles, cobbles, bluestone, gangue, dolomite, calcite, quartzite, etc.

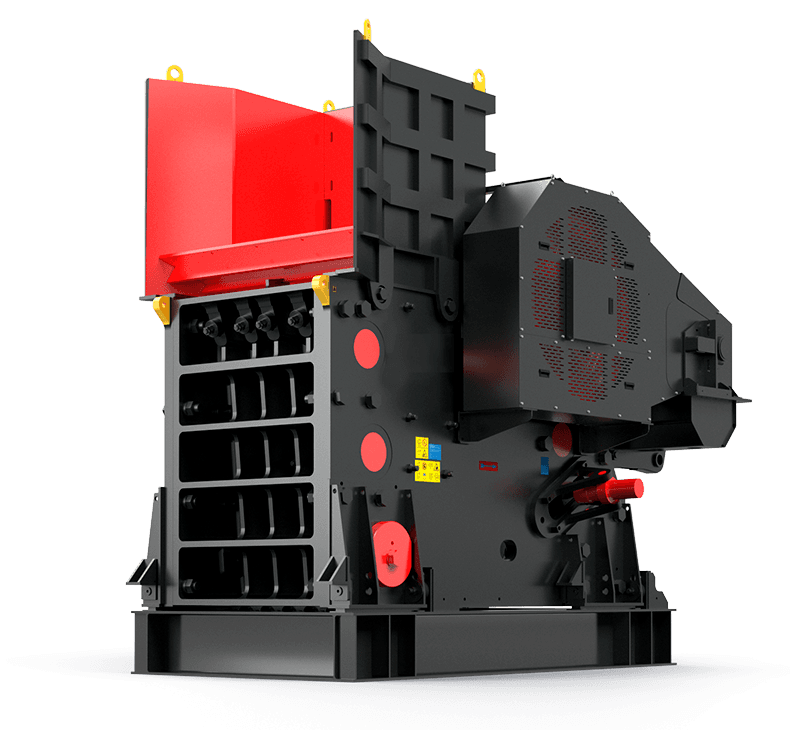

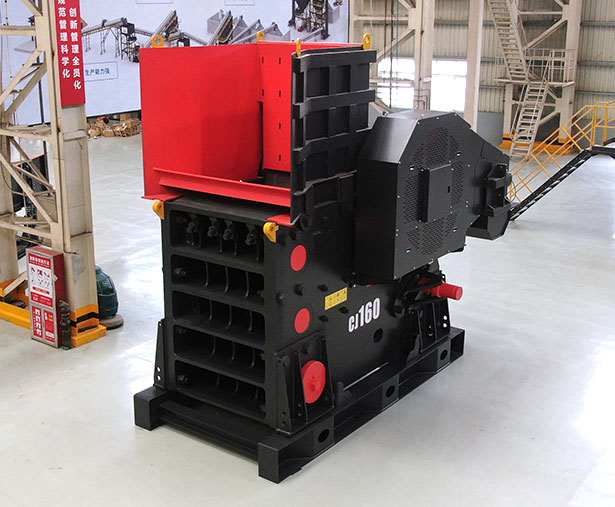

CJ series European version jaw crusher is commonly used for primary or secondary crushing in the mining material crushing. It is advanced equipment developed for the crushing of construction materials in highway, railway, airport runway and other projects. It can also be used for secondary and fine crushing of various hard ores and rocks in metallurgy, mining, chemical, cement, construction, refractory, ceramics and other industrial sectors. Compared with the traditional secondary jaw crusher, European version of jaw crusher shows its unparalleled superiority at the aspects of service life, maintenance rate and failure rate.
The CJ Series Jaw Crusher has less occupied space, larger crushing ratio and more stable operation. It has more advantages in transportation, installation, maintenance and adjustment. It is particularly suitable for fixed crushing lines and mobile crushing plants. The CJ Series Jaw Crusher has a maximum production capacity of 1160 t/h. Compared with the previous jaw crusher of the same specification, the bearing size is enlarged and the service lifespan is prolonged. The 4 bearings of the movable jaw and the frame are the same, which reduces the types of spare parts.
The deep V cavity allows the material into the crushing cavity without any obstruction, thus ensuring the best feeding ability.
Greater fatigue resistance, higher reliability, and longer service life provide a good operating environment for the equipment.
Large crushing ratio and stable operation, which fully guarantees the high yield and high efficiency of the crushing operation.
We will deliver products timely by contract.We will supply you with installation drawings,specifications and operation manual.We offer lifetime warranty and components for products.
| Model | Feeding opening size L×W（mm） | Maximum Feeding size（mm） | Adjustment range of discharge port（mm） | Capacity（t/h） | Power（KW） | Dimensions L×W×H（mm） |
| CJ80 | 800×510 | 410 | 40-175 | 55-335 | 4P 75 | 2660×2162×1800 |
| CJ96 | 930×580 | 480 | 60-175 | 105-390 | 4P 90 | 2850×2180×1990 |
| CJ100 | 1000×760 | 600 | 70-200 | 150-420 | 4P 110 | 3535×2350×2510 |
| CJ106 | 1060×700 | 560 | 70-200 | 150-500 | 4P 110 | 3280×2510×2400 |
| CJ116 | 1150×760 | 608 | 70-200 | 165-580 | 4P 132 | 3840×2440×2650 |
| CJ120 | 1200×870 | 700 | 70-200 | 175-610 | 4P 160 | 3700×2790×2950 |
| CJ125 | 1250×950 | 760 | 100-250 | 270-831 | 4P 160 | 4230×2820×3080 |
| CJ130 | 1300×1000 | 800 | 100-250 | 270-831 | 4P 185 | 4220×2810×3330 |
| CJ150 | 1400×1200 | 960 | 125-250 | 340-880 | 4P 200 | 5040×3445×3970 |
| CJ160 | 1600×1200 | 960 | 150-300 | 430-1145 | 4P 250 | 5780×3460×3840 |
| CJ180 | 1800×1200 | 960 | 150-300 | 500-1300 | 6P 315 | 5640×3780×3920 |
| CJ200 | 2000×1500 | 1200 | 175-300 | 630-1435 | 6P 400 | 6600×4040×4580 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Maximum Feeding size（mm） | Capacity（t/h） |
| CJ80 | 410 | 55-335 |
| CJ96 | 480 | 105-390 |
| CJ100 | 600 | 150-420 |
| CJ106 | 560 | 150-500 |
| CJ116 | 608 | 165-580 |
| CJ120 | 700 | 175-610 |
| CJ125 | 760 | 270-831 |
| CJ130 | 800 | 270-831 |
| CJ150 | 960 | 340-880 |
| CJ160 | 960 | 430-1145 |
| CJ180 | 960 | 500-1300 |
| CJ200 | 1200 | 630-1435 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
