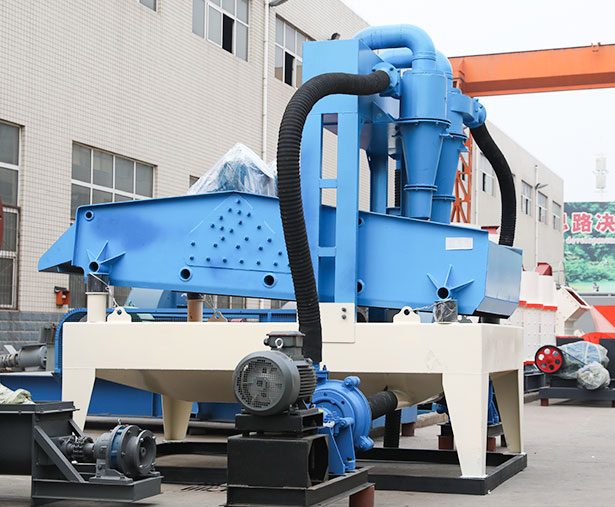

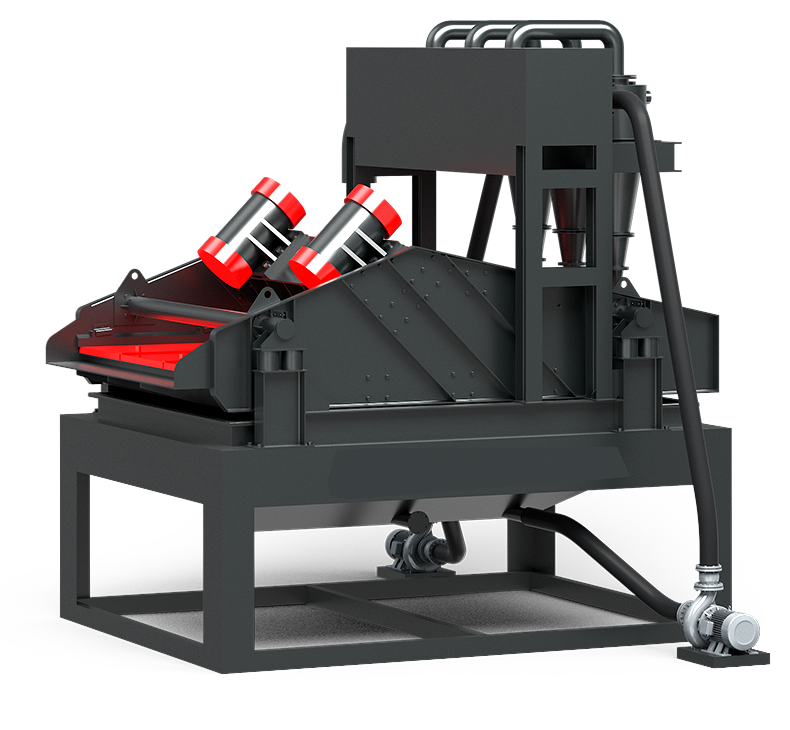

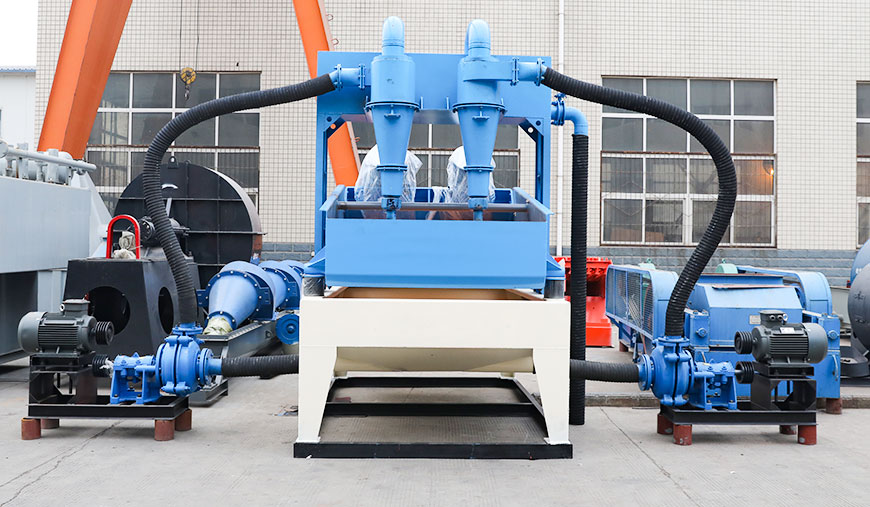

The fine sand recovery machine separates the slurry with the concentration≤40% into the hydrocyclone separator through the slurry pump, and the separated coarse fraction enters the dehydration flash sieve for dehydration recovery. Maximize the recovery of materials above 75cm, remove sludge and clay below 75cm, can be used with the sand washing machine on the existing production line, or can be used alone to improve resource utilization and maximize revenue.
The company is headquartered in Zhengzhou High-tech Industrial Development Zone, Henan Province, China, covering a total area of 350,000 square meters, with 260,000 square meters of standardized heavy industrial plants, more than 600 large and medium-sized processing, riveting and assembly equipment, online employees More than 2,300 people, including the level and title of management cadres and engineering and technical personnel more than 400 people.
We will deliver products timely by contract.We will supply you with installation drawings,specifications and operation manual.We offer lifetime warranty and components for products.
| Model | Sand Pump Power (kw) |
Sepatator Spec (mm) |
Dewatering Screen | Processing Water Volume (m3/h) |
|
| Specifications (mm) |
Power (kw) |
||||
| HX-250 | 11 | 250 | 800×2000 | 2×0.75 | 30-60 |
| HX-300 | 15 | 300 | 800×2000 | 2×0.75 | 60-100 |
| HX-350 | 18.5 | 350 | 1000×2000 | 2×1.52 | 70-130 |
| HX-550 | 11×2 | 250×2 | 1200×3000 | 2×2.4 | 100-220 |
| HX-650 | 15×2 | 300×2 | 1500×3000 | 2×3 | 120-272 |
| HX-750 | 18.5×2 | 350×2 | 1500×3000 | 2×3 | 180-350 |
| HX-750(Ⅱ) | 22×2 | 350×2 | 1800×3600 | 2×3.7 | 230-430 |
| HX-900 | 18.5×3 | 350×3 | 1800×3600 | 2×3.7 | 450-650 |
| Model | Sand Pump Power (kw) |
Processing Water Volume (m3/h) |
| HX-250 | 11 | 30-60 |
| HX-300 | 15 | 60-100 |
| HX-350 | 18.5 | 70-130 |
| HX-550 | 11×2 | 100-220 |
| HX-650 | 15×2 | 120-272 |
| HX-750 | 18.5×2 | 180-350 |
| HX-750(Ⅱ) | 22×2 | 230-430 |
| HX-900 | 18.5×3 | 450-650 |
