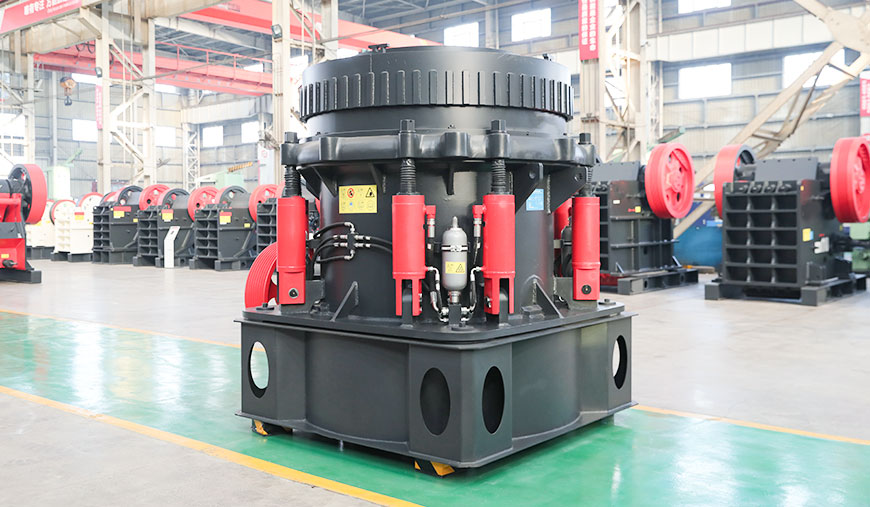

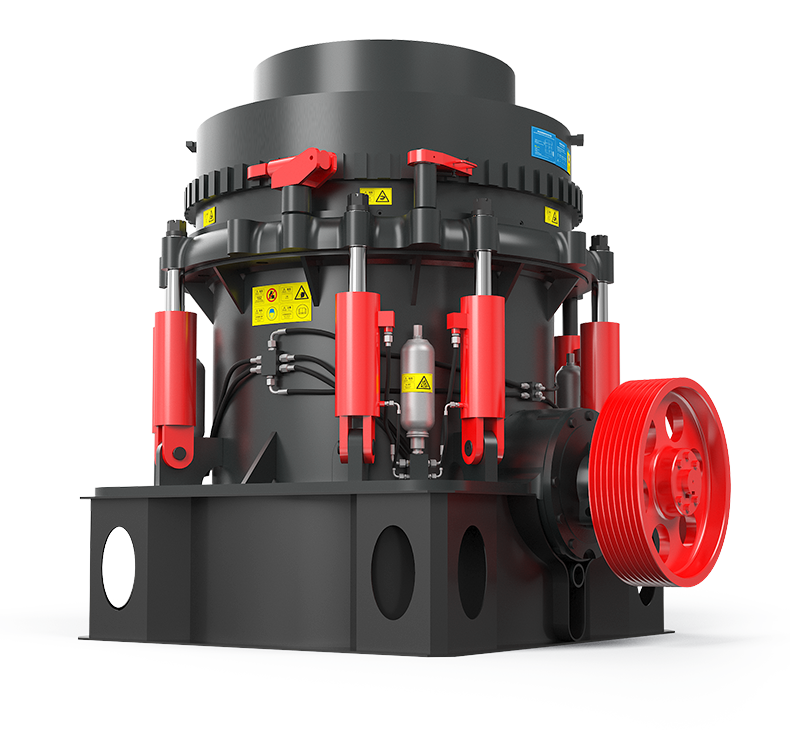

GYS Series Hydraulic Cone Crusher

Applied materials: various rocks, ores, granite, basalt, limestone, marble, river pebbles, cobbles, bluestone, gangue, dolomite, calcite, quartzite, etc.

Production Capacity 36-1814t/h
Feed size≤314mm

Production Introduction

Hydraulic cone crusher is mainly used in sand and gravel industry, for medium and fine crushing of a variety of mine and rocks such as iron ore, non-ferrous metal ore, basalt, granite, limestone, sandstone, pebbles and so on.

Working Principle

During operation, the rotation of the motor drives the pulley or coupling, the transmission shaft and the cone part to make the eccentric shaft perform periodic pendulum motion below the axis line. After the material enters the crushing chamber from the material inlet, it is crushed by the mutual impact, extrusion, grinding and kneading of the eccentric shaft and the mortar wall. The hydraulic safety system can remove the faulty objects from the support sleeve and the fixed cone part through hydraulic pressure when the machine has an iron fault or a jamming phenomenon, which greatly reduces the maintenance rate and improves production efficiency while playing a good insurance role.

The Main Benefits and Advantages

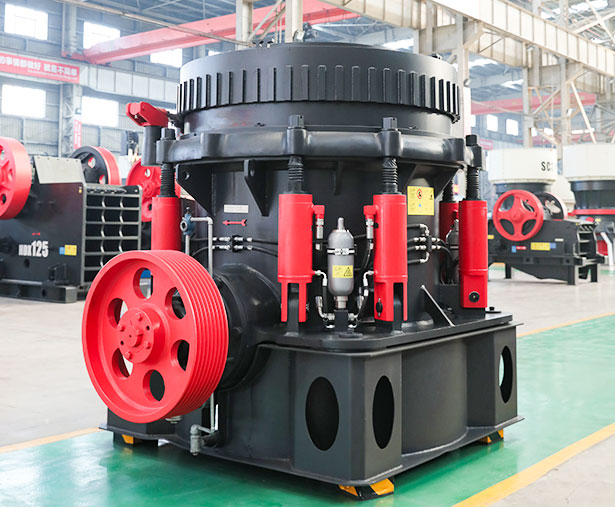

GYS Series Hydraulic Cone Crusher

Automatic control of overload protection and cleaning chamber function by using bumper;

Fully automatic control system is easy for remote and side-by-side control;

Hydraulic lubrication oil station with small volume;

Electrical connection adopts aviation plug, no wiring required;

Discharge opening is adjusted by hydraulic cylinder.

Customer Cases

We will deliver products timely by contract.We will supply you with installation drawings,specifications and operation manual.We offer lifetime warranty and components for products.

Technical Parameter

Model	Cavities	Broken cone big end diameter（mm）	Feeding Size（mm）	Max.feeding Size（mm）	Adjusting Range of Discharge Opening（mm）	Processing capacity（t/h）	Power（kw）
GYS 300	C1	910	175	140	13-38	81-180	90
	C2		102	80	9-22	60-180
	F1		76	60	3-16	36-145
	F2		41	30	3-13	36-130
GYS 400	C1	1300	241	190	19-51	207-400	200
	C2		210	168	16-38	162-350
	C3		137	110	13-31	126-310
	F1		105	85	8-25	109-230
	F2		89	70	6-16	82-230
	F3		64	50	3-16	40-230
GYS 500	C1	1600	269	215	25-64	280-650	280
	C2		241	190	22-51	258-450
	C3		209	170	16-38	180-410
	F1		133	105	10-25	162-355
	F2		89	70	6-19	136-330
	F3		70	55	5-13	90-300

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Cavities	Max.feeding Size（mm）	Processing capacity（t/h）
GYS 300	C1	140	81-180
	C2	80	60-180
	F1	60	36-145
	F2	30	36-130
GYS 400	C1	190	207-400
	C2	168	162-350
	C3	110	126-310
	F1	85	109-230
	F2	70	82-230
	F3	50	40-230
GYS 500	C1	215	280-650
	C2	190	258-450
	C3	170	180-410
	F1	105	162-355
	F2	70	136-330
	F3	55	90-300

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
