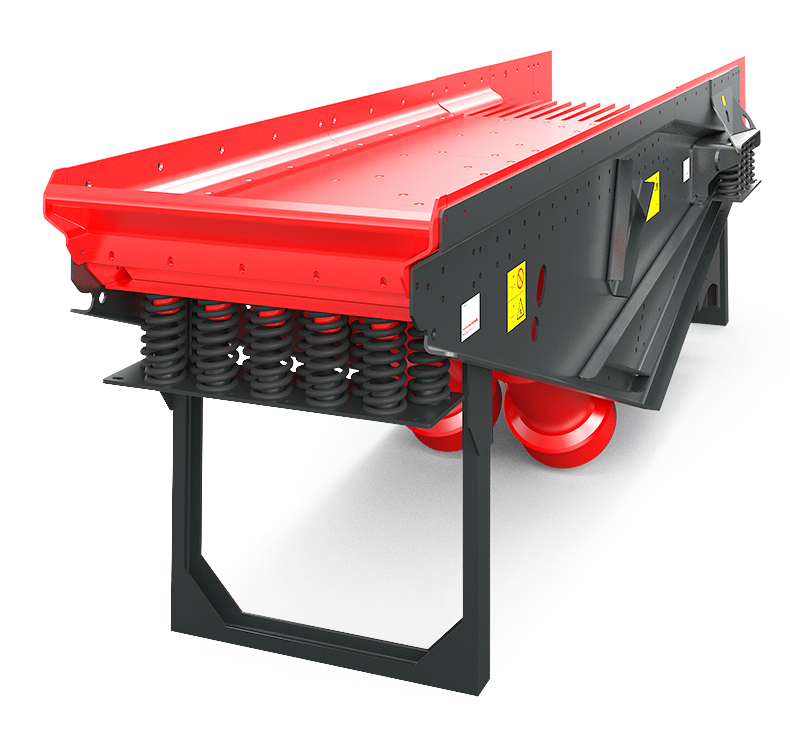

GZG series hopper feeder of 118 Technology Group, equipped with transit silo, can continuously and stably feed the fine crushing equipment, which is specially used to solve the problem of impact and damage to the fine crushing equipment caused by intermittent feeding on site, and greatly improve the service life and production efficiency of the fine crushing equipment.
All welded groove body, compact structure;
Double vibration motor drive, stable performance;
Suspension installation, easy to adjust the installation Angle;
The inner side of the tank is equipped with NM400 wear-resistant lining layer to prolong the service life;
We will deliver products timely by contract.We will supply you with installation drawings,specifications and operation manual.We offer lifetime warranty and components for products.
| Model | Feeding size（mm） | Double Amplitude（mm） | Feeding Capacity（t/h） | Motor Power（kw） | |
| 0° | 10° | ||||
| GZG7012 | 200 | 2.5-3.5 | 120 | 170 | 2×0.55 |
| GZG9015 | 250 | 2.5-3.5 | 180 | 250 | 2×0.75 |
| GZG1117 | 300 | 2.5-3.5 | 300 | 420 | 2×1.1 |
| GZG1320 | 350 | 2.5-3.5 | 480 | 670 | 2×1.5 |
| GZG1625 | 500 | 2.5-3.5 | 770 | 1100 | 2×2.2 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Feeding size（mm） | Feeding Capacity（t/h） | Motor Power（kw） | |
| 0° | 10° | |||
| GZG7012 | 200 | 120 | 170 | 2×0.55 |
| GZG9015 | 250 | 180 | 250 | 2×0.75 |
| GZG1117 | 300 | 300 | 420 | 2×1.1 |
| GZG1320 | 350 | 480 | 670 | 2×1.5 |
| GZG1625 | 500 | 770 | 1100 | 2×2.2 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
