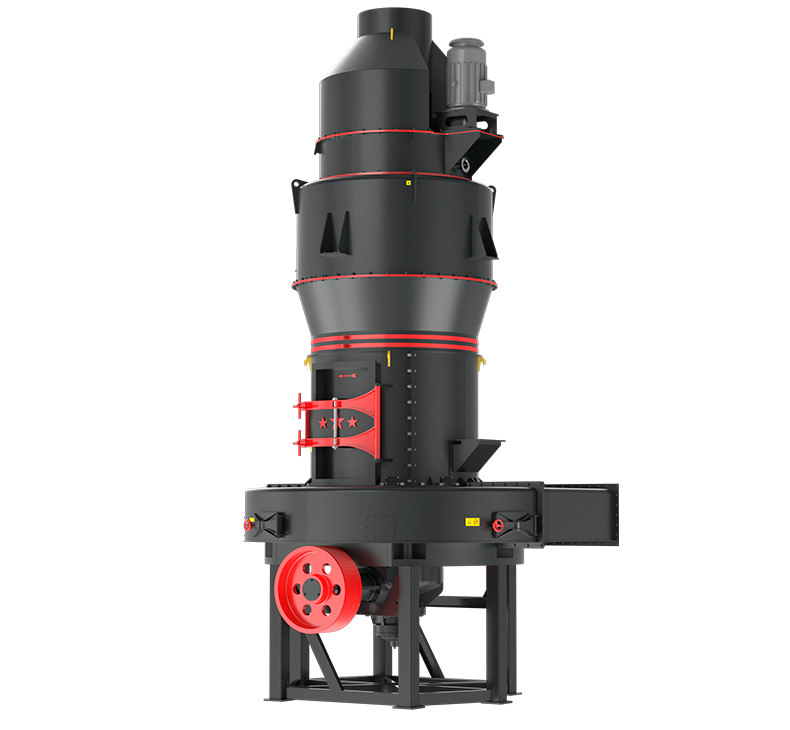

The H5M series German version of the intelligent grinding mill is a new product with high technical level developed by 118 Technology Group's scientific research institute on the basis of more than 40 years of experience in the research and development of mill equipment,according to the actual situation of users using mill equipment for many years,in response to the needs of the development of the milling industry,absorbing the cutting-edge domestic and foreign mature milling technology and concepts,and developing new products with high technological level with great dedication.
Use high-pressure centrifugal fans,energy-saving and efficient,ensuring stable wind power for system operation.
Unique spindle and grinding roller assembly thin oil lubrication structure,lubrication effect is significantly improved,bearing life can reach 3-10 years,refueling cycle of up to 6 months and the maintenance is simple.
With the grinding roller linkage boosting technology,the crushing and gninding force can be increased to 2.5 tons,significantly improving the ability to crush hard materials,and the production capacity of ordinary materials can be increased by more than 10%.
V-belt plus gear transmission,compact structure,smooth transmission and low noise.
The stepless frequency conversion turbine powder separator improves the efficiency and accuracy of powder selection,so that the particle size of the finished product can be adjusted arbitrarily between 50 mesh to 800 mesh,and the adjustment range of the screening rate can reach 80-99%.
Equipped with special pulse dust collector,the dust removal efficiency can be 99.9%,the emission concentration is s 10mg/Nm',which is better than the national environmental protection emission standard,and realizes dustfree operation in the production workshop.
We will deliver products timely by contract.We will supply you with installation drawings,specifications and operation manual.We offer lifetime warranty and components for products.
| Model | Feeding size (mm) |
Finished product size (mm) |
Capacity (t/h) |
Grinding ring diameter (mm) |
Number of grinding roller | Power of main machine (kW) |
Blower power (kW) |
Analyzer power (kW) |
| H5M115 | <25 | 0.25-0.015 | 1.2-15 | 1220 | 4 | 55 | 75 | 15 |
| H5M145 | <30 | 0.25-0.038 | 2-26 | 1570 | 4 | 90/110 | 132 | 18.5/22 |
| H5M178 | <35 | 0.25-0.038 | 3-38 | 1950 | 4 | 185/200 | 200/220 | 30/37 |
| H5M198 | <35 | 0.25-0.038 | 6-45 | 2040 | 5 | 250/280 | 250/280 | 45/55 |
| H5M218 | <40 | 0.25-0.038 | 7-55 | 2340 | 4/6 | 315/355 | 315/355 | 55/75 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Capacity (t/h) |
Power of main machine (kW) |
| H5M115 | 1.2-15 | 55 |
| H5M145 | 2-26 | 90/110 |
| H5M178 | 3-38 | 185/200 |
| H5M198 | 6-45 | 250/280 |
| H5M218 | 7-55 | 315/355 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
