Applied materials: various rocks, ores, granite, basalt, limestone, marble, river pebbles, cobbles, bluestone, gangue, dolomite, calcite, quartzite, etc.

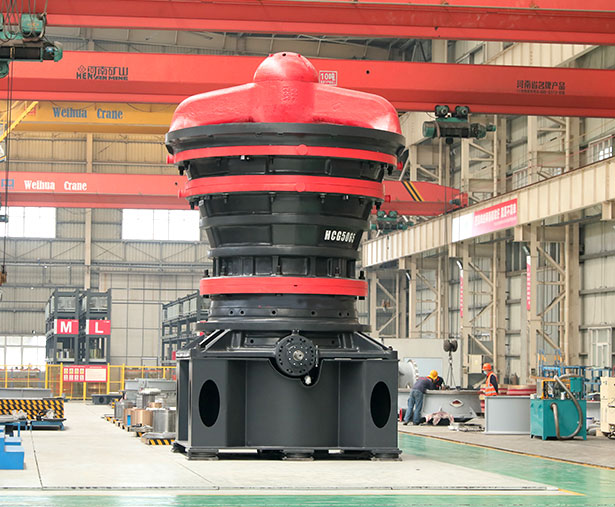

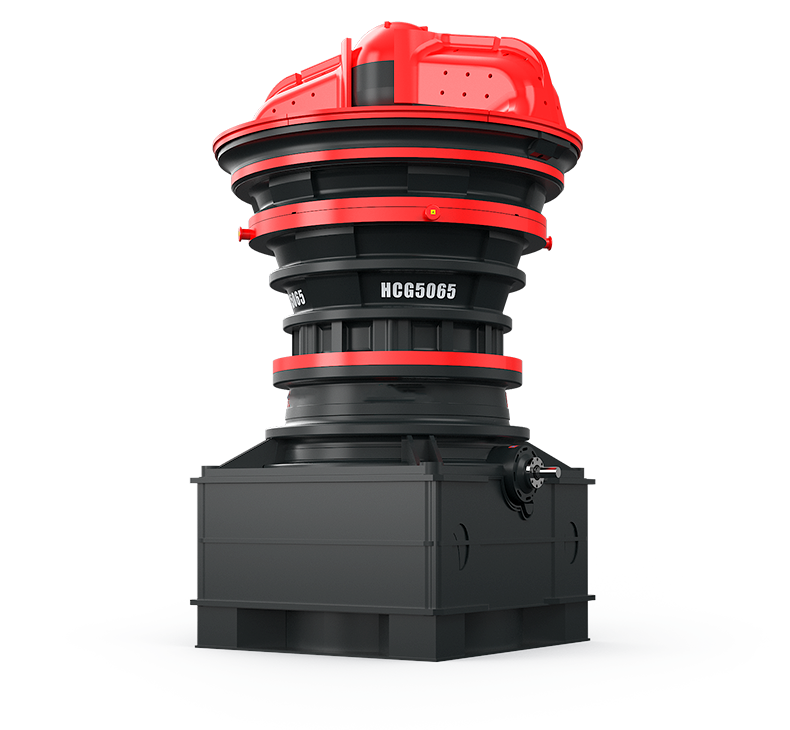

HCG Series Gyratory Crusher is a new type of high-efficiency coarse crushing equipment independently developed by 118 Technology based on the introduction of advanced technology from Europe and the United States and the development needs of modern industry, aiming at the specific needs of large equipment in the global market. The equipment adopts international advanced technology manufacturing, the overall performance is in the leading position in the industry, mainly used for the primary crushing of materials, can process the high, medium hardness of various materials, has been successfully used in metal mines, aggregate mines, large engineering construction field of many industries.
This series of models can meet the configuration requirements of crushing system with processing capacity of 2000-10000t/h.
The crushing cone uses the rotating motion of the crushing cone in the cone cavity of the shell to squeeze, split and bend the material, and roughly crush ores or rocks of various hardness. The upper end of the main shaft equipped with the crushing cone is supported in the bushing in the middle of the beam, and the lower end is placed in the eccentric hole of the sleeve. When the sleeve rotates, the crushing cone moves eccentrically around the center line of the machine. Its crushing action is continuous, so its working efficiency is higher than that of the jaw crusher.
Large capacity and low cost crushing The key to the production capacity of the equipment lies in the cavity design of the equipment. The HCG gyratory crusher has a fine crushing cavity design to ensure stronger production capacity, larger feed particle size and longer liner life;
The addition of the intelligent control system effectively reduces the frequency of equipment overload and ensures that the equipment can achieve greater throughput and lower failure rate;
As a super-large equipment, HCG gyratory crusher is designed with special attention to the convenience of maintenance, and is equipped with automatic lubrication and hydraulic system.
Through the Internet of Things technology, the operating status of the crusher can be obtained in real time, such as the load situation, the usage of the liner, and the frequency of failures.
We will deliver products timely by contract.We will supply you with installation drawings,specifications and operation manual.We offer lifetime warranty and components for products.
| Model | Feeding opening size (mm) |
Maximum Feeding size (mm) |
Adjustment range of discharge port (mm) |
Capacity (t/h) |
Power (kw) |
Dimensions L×W×H(mm) |
| HCG4265 | 1065 | 900 | 140-175 | 2018-2878 | 400 | 3940×4170×6900 |
| HCG5065 | 1270 | 1050 | 150-175 | 2403-2943 | 400 | 4460×4430×7610 |
| HCG5475 | 1370 | 1150 | 150-200 | 2893-3493 | 450 | 4930×4925×8410 |
| HCG6275 | 1575 | 1350 | 150-200 | 2898-4338 | 450 | 5580×5250×9090 |
| HCG6089 | 1525 | 1300 | 165-230 | 4203-5813 | 630 | 5590×5445×10470 |
| HCG60110 | 1525 | 1300 | 175-250 | 5543-8898 | 1250 | 6200×5940×11390 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Feeding opening size (mm) |
Maximum Feeding size (mm) |
Capacity (t/h) |
| HCG4265 | 1065 | 900 | 2018-2878 |
| HCG5065 | 1270 | 1050 | 2403-2943 |
| HCG5475 | 1370 | 1150 | 2893-3493 |
| HCG6275 | 1575 | 1350 | 2898-4338 |
| HCG6089 | 1525 | 1300 | 4203-5813 |
| HCG60110 | 1525 | 1300 | 5543-8898 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
