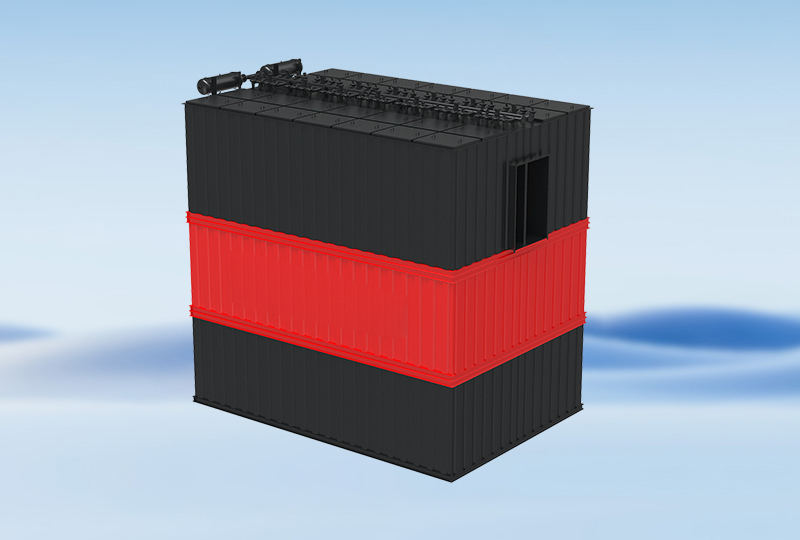

HLMC series line spray offline pulse dust collector is a new type of high-efficiency bag dust collector. The HLMC type line spray offline pulse dust collector is serving the foundry,metallurgy,machinery,electric power,building materials,mining,cement,chemical and other industries with its excellent performance.It is suitable for integrated dust collection with large air volume,high dust concentration and limited site,such as sand making building and sand making line where the site is compact.
Dusty gas goes in from the air intake of the dust collector and into the ash bucket through the partition board, and at the same time the air flow slows down. Due to the inertia, the coarse particles in the gas will fall into the ash bucket, and the fine dust particles will go up along with the gas and into the filtering chamber. The powder dust will stick onto the surface of the filter bag, and the purified gas will go into the upper cleaning room through the filter bag and be sucked by the main air blower of the dust collecting system and discharged into the air.
Small footprint,high degree of automation,good dust cleaning effect,and stable performance.
We will deliver products timely by contract.We will supply you with installation drawings,specifications and operation manual.We offer lifetime warranty and components for products.
| Model | Processing air volume (m³/h) |
filtration velocity (m/min) |
Total filtering area (m²) |
Net filtering area (m²) |
Dust concentration of imported air (g/Nm³) |
Dust concentration of outlet air (g/Nm³) |
Clean compressed air | |
| Pressure (Pa) | Air consumption(Nm³/min) | |||||||
| HLMC1000 | 48000~120000 | 0.8~2.0 | 1100 | 1000 | <1000 | <0.02 | (5~7) x 105 | 2.1 |
| HLMC1400 | 67200~168000 | 1500 | 1400 | <1000 | <0.02 | 2.1 | ||
| HLMC1700 | 81600~204000 | 1820 | 1700 | <1000 | <0.02 | 3 | ||
| HLMC2100 | 100800~252000 | 2280 | 2100 | <1000 | <0.02 | 3 | ||
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Processing air volume (m³/h) |
filtration velocity (m/min) |
Total filtering area (m²) |
Dust concentration of imported air (g/Nm³) |
| HLMC1000 | 48000~120000 | 0.8~2.0 | 1100 | <1000 |
| HLMC1400 | 67200~168000 | 1500 | <1000 | |
| HLMC1700 | 81600~204000 | 1820 | <1000 | |
| HLMC2100 | 100800~252000 | 2280 | <1000 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
