Applied materials: various rocks, ores, granite, basalt, limestone, marble, river pebbles, cobbles, bluestone, gangue, dolomite, calcite, quartzite, etc.

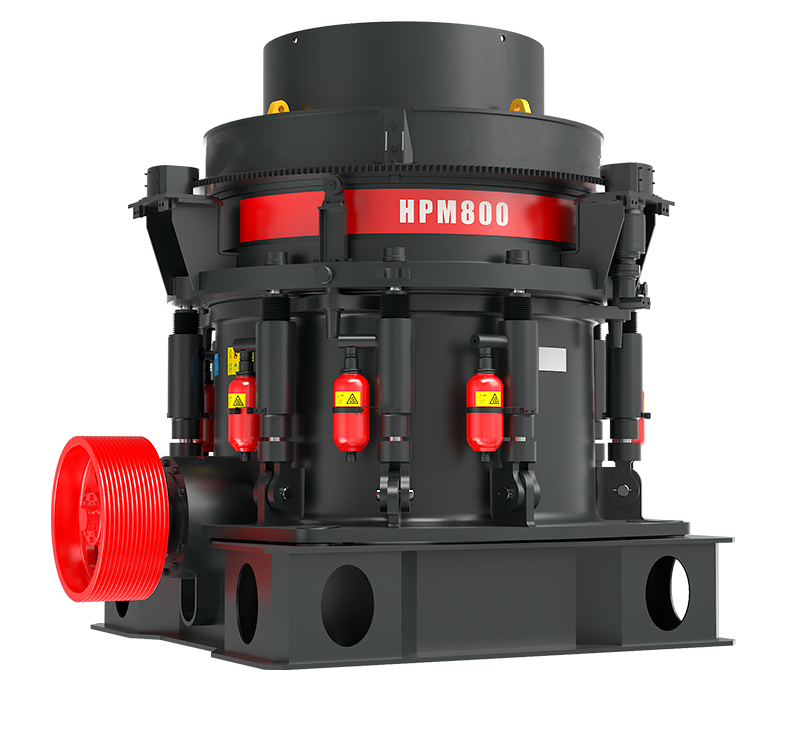

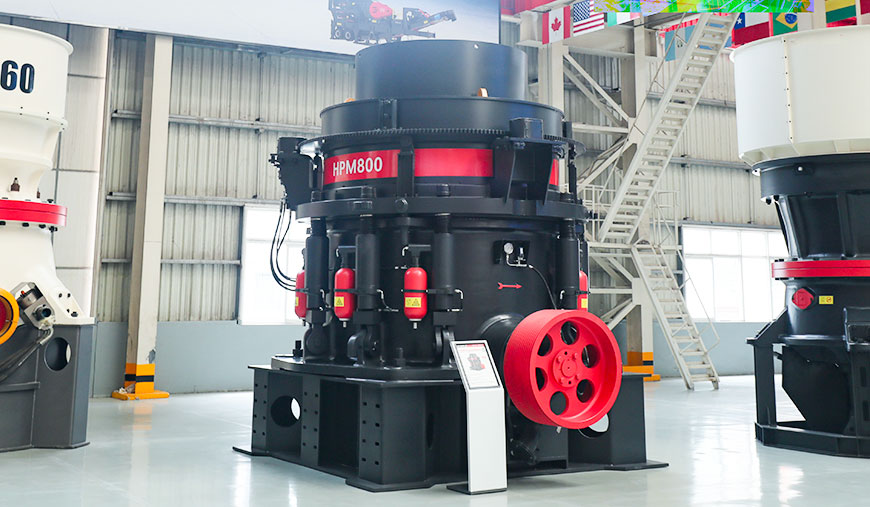

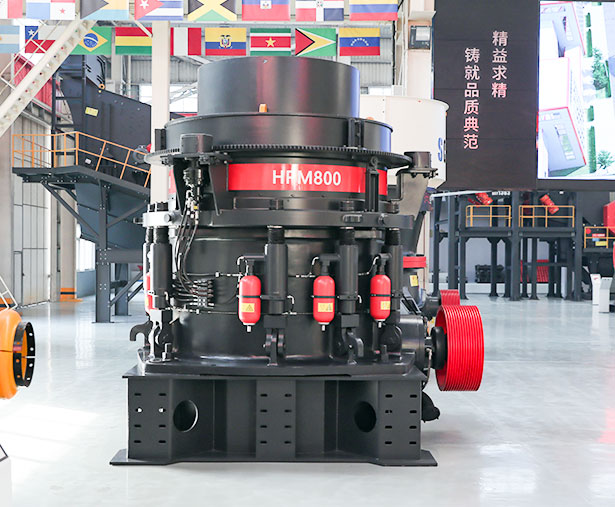

Multi-cylinder hydraulic cone crusher mainly consists of fixed cone, dynamic cone, eccentric bushing, transmission device, rack device, adjusting ring, feed bin, and adjustment device of discharge port, hydraulic station, lubrication station, special tools and other components. It is developed based on the spring cone crusher and its basic structure is similar with spring cone crusher. Multi-cylinder cone crusher is typical crushing equipment for the medium and fine crushing of hard materials. It is widely used in mining, metallurgy, construction, chemical, power, transportation and other industries.
During operation, the rotation of the motor drives the pulley or coupling, the transmission shaft and the cone part to make the eccentric shaft perform periodic pendulum motion below the axis line. After the material enters the crushing chamber from the material inlet, it is crushed by the mutual impact, extrusion, grinding and kneading of the eccentric shaft and the mortar wall. The hydraulic safety system can remove the faulty objects from the support sleeve and the fixed cone part through hydraulic pressure when the machine has an iron fault or a jamming phenomenon, which greatly reduces the maintenance rate and improves production efficiency while playing a good insurance role.
Ensure the cube shape
Effectively prevent dust and other sundries from entering the equipment and oil tank to avoid lubricating oil pollution
Replacing lining board is economical and time saving
High transmission efficiency, quiet, prevent burning sleeve.
We will deliver products timely by contract.We will supply you with installation drawings,specifications and operation manual.We offer lifetime warranty and components for products.
| Model | Cavities | Maximum Feeding size (mm) |
Minimum Discharging Size (mm) |
Capacity (t/h) |
Speed（r/m） | Power (kw) |
| HPM200 | C1 | 145 | 22 | 160~250 | 750-1200 | 160 |
| C2 | 100 | 18 | 145~250 | |||
| C3 | 75 | 14 | 120~250 | |||
| F1 | 60 | 12 | 108~210 | |||
| F2 | 45 | 10 | 81~210 | |||
| HPM300 | C1 | 190 | 26 | 230~445 | 700-1200 | 220 |
| C2 | 170 | 20 | 200~445 | |||
| C3 | 120 | 16 | 180~445 | |||
| C4 | 85 | 14 | 160~220 | |||
| F1 | 40 | 12 | 140~220 | |||
| HPM400 | C1 | 240 | 35 | 270~630 | 700-1000 | 315 |
| C2 | 200 | 25 | 252~630 | |||
| C3 | 160 | 25 | 243~630 | |||
| C4 | 90 | 18 | 210~630 | |||
| F1 | 75 | 15 | 162~370 | |||
| F2 | 40 | 13 | 126~370 | |||
| HPM500 | C1 | 270 | 38 | 365~790 | 700-950 | 400 |
| C2 | 230 | 30 | 328~790 | |||
| C3 | 165 | 22 | 280~790 | |||
| F1 | 105 | 20 | 202~450 | |||
| F2 | 75 | 16 | 175~450 | |||
| F3 | 42 | 8 | 158~450 | |||
| HPM650 | C1 | 262 | 30 | 386~790 | 590-930 | 500 |
| C2 | 225 | 25 | 348~790 | |||
| C3 | 175 | 20 | 300~790 | |||
| F1 | 85 | 13 | 280~530 | |||
| F2 | 42 | 9 | 220~530 | |||
| HPM800 | C1 | 280 | 38 | 616~1100 | 700-950 | 630 |
| C2 | 240 | 38 | 522~1100 | |||
| C3 | 214 | 25 | 495~1100 | |||
| C4 | 175 | 22 | 380~1100 | |||
| F1 | 125 | 20 | 328~730 | |||
| F2 | 75 | 16 | 270~730 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Cavities | Maximum Feeding size (mm) |
Capacity (t/h) |
| HPM200 | C1 | 145 | 160~250 |
| C2 | 100 | 145~250 | |
| C3 | 75 | 120~250 | |
| F1 | 60 | 108~210 | |
| F2 | 45 | 81~210 | |
| HPM300 | C1 | 190 | 230~445 |
| C2 | 170 | 200~445 | |
| C3 | 120 | 180~445 | |
| C4 | 85 | 160~220 | |
| F1 | 40 | 140~220 | |
| HPM400 | C1 | 240 | 270~630 |
| C2 | 200 | 252~630 | |
| C3 | 160 | 243~630 | |
| C4 | 90 | 210~630 | |
| F1 | 75 | 162~370 | |
| F2 | 40 | 126~370 | |
| HPM500 | C1 | 270 | 365~790 |
| C2 | 230 | 328~790 | |
| C3 | 165 | 280~790 | |
| F1 | 105 | 202~450 | |
| F2 | 75 | 175~450 | |
| F3 | 42 | 158~450 | |
| HPM650 | C1 | 262 | 386~790 |
| C2 | 225 | 348~790 | |
| C3 | 175 | 300~790 | |
| F1 | 85 | 280~530 | |
| F2 | 42 | 220~530 | |
| HPM800 | C1 | 280 | 616~1100 |
| C2 | 240 | 522~1100 | |
| C3 | 214 | 495~1100 | |
| C4 | 175 | 380~1100 | |
| F1 | 125 | 328~730 | |
| F2 | 75 | 270~730 | |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
