Application fields：metal and non-metallic ore, building materials, artificial sand and various metallurgical slag crushing and shaping.

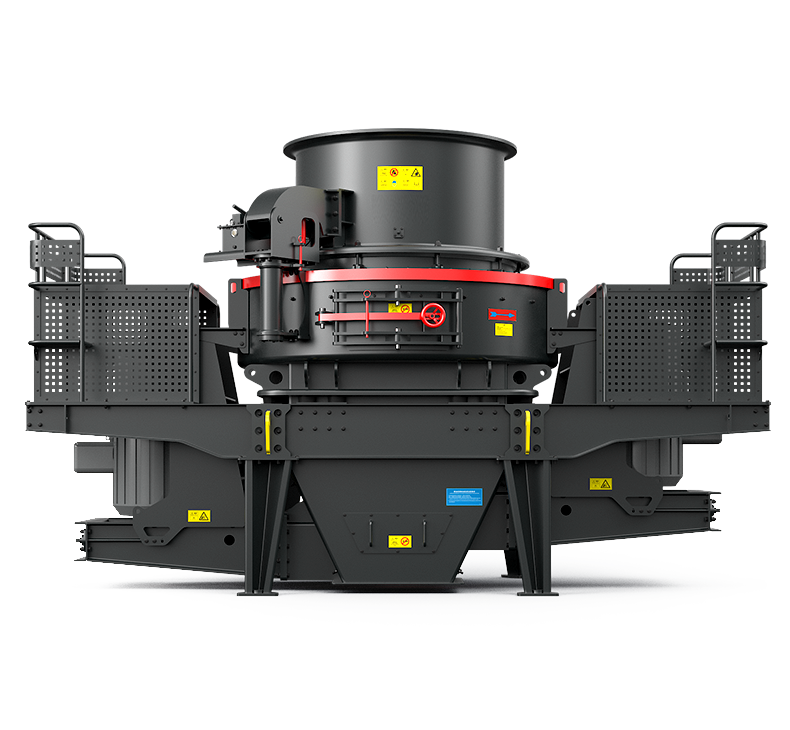

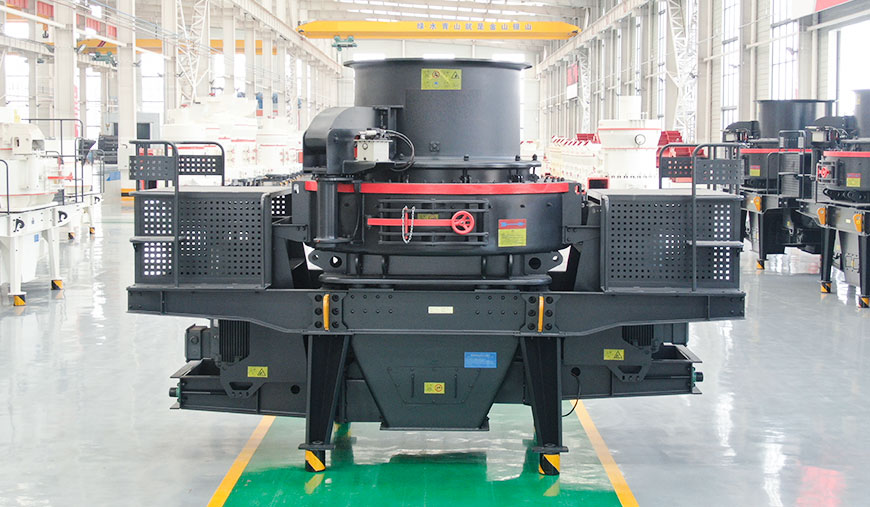

The HVI series sand maker is a new generation of products that our company introduces German technology, absorbs the domestic and foreign similar products' advanced technology development, and has many spontaneous R & D characteristics at the same time, which integrates all kinds of crushing modes,become the core equipment of mechanism sand industry. Can be widely used in metal and non-metallic ore, building materials, artificial sand and various metallurgical slag crushing and shaping.
The impeller structure adopts a unique deep cavity four-port design to increase material throughput by more than 30% and special bulk tray design to convert quickly feeding and waterfall feeding, effectively reducing downtime, adjustment time, and improving work efficiency. The final products have cube form and the shaping effect is good, the iron pollution is extremely small, and the size of the grain can be adjusted according to actual needs.
Improves crushing efficiency and increases its throughout;
Type and grease -type modular design can achieve overall interchange.
Impact crushing, excellent granules;
High wear resistance impact material.
We will deliver products timely by contract.We will supply you with installation drawings,specifications and operation manual.We offer lifetime warranty and components for products.
| Model | Hard material | Soft material | Sand Shaping | Sand Making | Motor Power（kw） |
| Max.Feeding Size （mm） | Throughput（t/h） | ||||
| HVI 0815 | <30 | <35 | 50-140 | 90-230 | 2×75 |
| HVI 0818 | <30 | <35 | 60-190 | 110-283 | 2×90 |
| HVI 0922 | <35 | <40 | 70-210 | 150-330 | 2×110 |
| HVI 0926 | <35 | <40 | 85-240 | 170-380 | 2×132 |
| HVI 1032 | <40 | <45 | 130-278 | 180-400 | 2×160 |
| HVI 1040 | <40 | <45 | 180-284 | 250-440 | 2×200 |
| HVI 1263 | <50 | <55 | 320-498 | 370-585 | 2×315 |
| Model | Sand Shaping | Sand Making | Motor Power (kw) |
| Max.Feeding Size （mm） | |||
| HVI 0815 | 50-140 | 90-230 | 2×75 |
| HVI 0818 | 60-190 | 110-283 | 2×90 |
| HVI 0922 | 70-210 | 150-330 | 2×110 |
| HVI 0926 | 85-240 | 170-380 | 2×132 |
| HVI 1032 | 130-278 | 180-400 | 2×160 |
| HVI 1040 | 180-284 | 250-440 | 2×200 |
| HVI 1263 | 320-498 | 370-585 | 2×315 |
