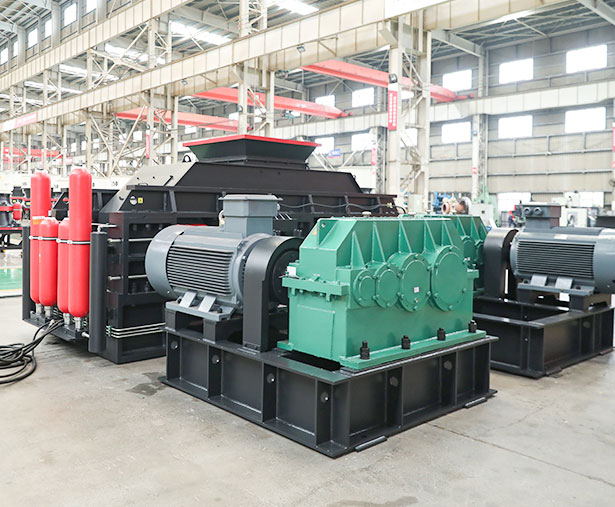

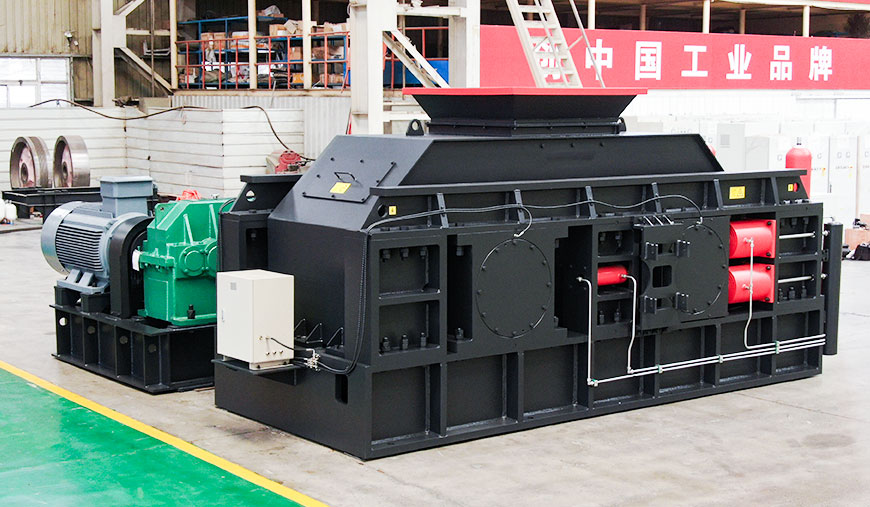

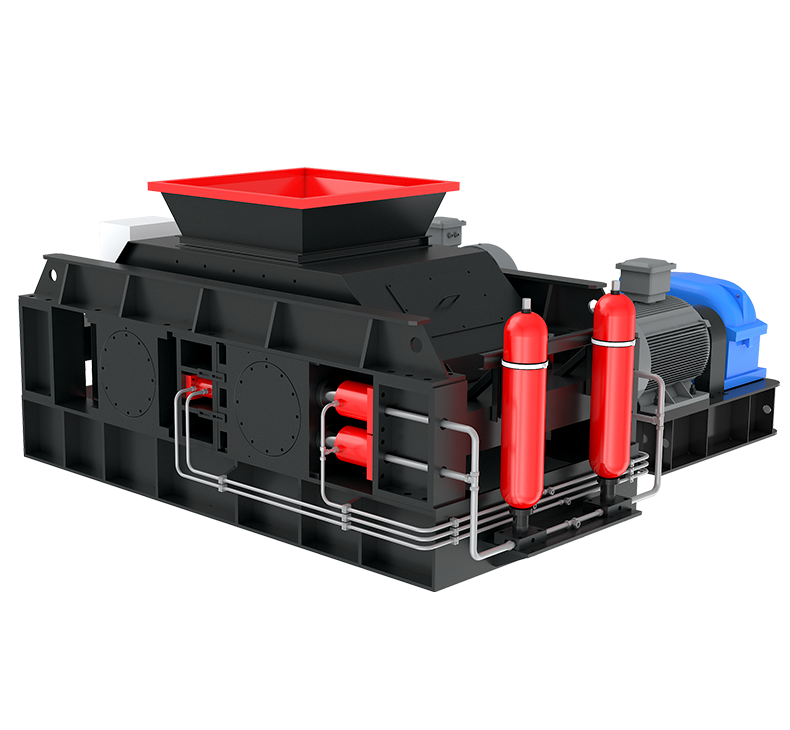

The hydraulic roller crusher is a new type of roller crusher that combines various advanced technologies. It has reasonable structure, advanced performance and powerful functions. Through excellent electromechanical and hydraulic integration design, the equipment can operate continuously, stably and reliably. In aggregate and grinding systems, it can generally increase the output by 30% - 40% and reduce the total energy consumption by 20% - 30%. It can finely crush materials of various hardness In mineral processing, chemical industry, refractory, stone processing, building materials and other industries.
The crushed material falls between the two rollers through the feeding port, where it is squeezed and crushed, and the finished material falls naturally. When encountering hard or unbreakable objects, the rollers can automatically retreat by the action of hydraulic cylinders or springs, increasing the gap between the rollers, allowing the hard or unbreakable objects to fall, thus protecting the machine from damage. There is a certain gap between the two rollers rotating in opposite directions. By changing the gap, the particle size of the product can be controlled.
Heavy thickened roller skin is adopted, with advanced materials, reasonable structure, wear resistance and impact resistance. The service life of parts is greatly extended with automatic lubrication device;
The equipment is equipped with an automatic control system, which is compact in structure, stable in operation, efficient and energy-saving. Compared with other crushing systems with the same performance, it can significantly reduce investment and usecosts, and has unparalleled advantages;
Keep the roller skin gap between 1-40mm stablely by hydraulic adjustment;
It is equipped with overload protection. When the unbreakable objects enter between the rollers, the rollers automatically give way and automatically recover to the set clearance.
We will deliver products timely by contract.We will supply you with installation drawings,specifications and operation manual.We offer lifetime warranty and components for products.
| Model | Roller Diameter (mm） | Roller Width (mm) | Maximum Feed Size(mm) | Corresponding processing capacity of discharge port(t/h) | Power(kw) | ||
| 5mm | 10mm | 15mm | |||||
| 2PGY1008 | ø 1000 | 800 | ≤40 | 20-80 | 30-110 | 50-150 | 2×55 |
| 2PGY1210 | ø 1200 | 1000 | ≤60 | 25-100 | 50-180 | 80-240 | 2×90 |
| 2PGY1510 | ø 1500 | 1000 | ≤80 | 30-130 | 60-240 | 90-330 | 2×160 |
| 2PGY1810 | ø 1800 | 1000 | ≤100 | 40-170 | 80-320 | 120-450 | 2×250 |
| 2PGY2012 | ø 2000 | 1200 | ≤120 | 60-220 | 110-400 | 170-600 | 2×315 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Maximum Feed Size(mm) | Corresponding processing capacity of discharge port(t/h) | ||
| 5mm | 10mm | 15mm | ||
| 2PGY1008 | ≤40 | 20-80 | 30-110 | 50-150 |
| 2PGY1210 | ≤60 | 25-100 | 50-180 | 80-240 |
| 2PGY1510 | ≤80 | 30-130 | 60-240 | 90-330 |
| 2PGY1810 | ≤100 | 40-170 | 80-320 | 120-450 |
| 2PGY2012 | ≤120 | 60-220 | 110-400 | 170-600 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
