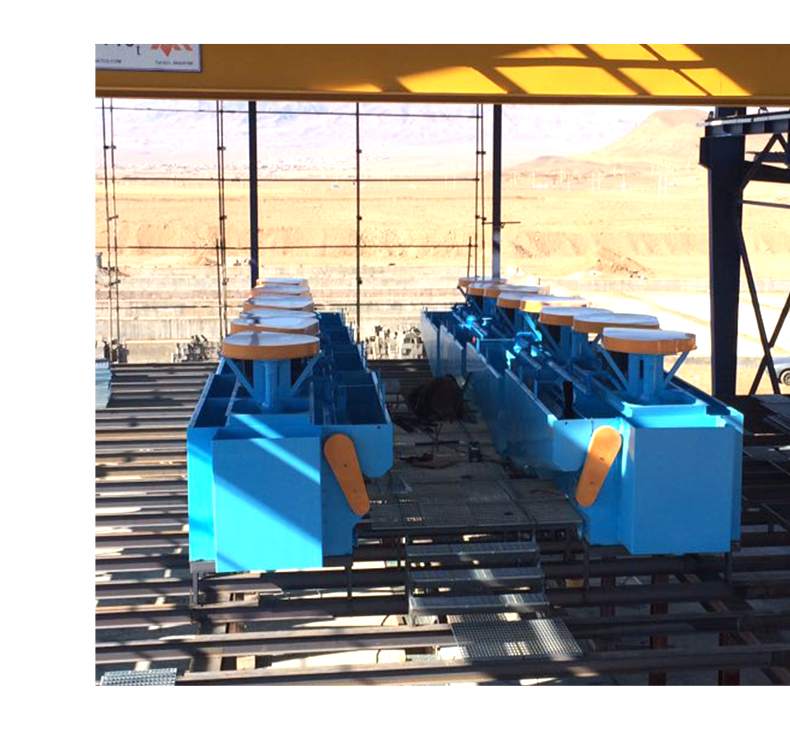

This type of flotation machine is formed by U trough solid,hollow shaft inflation,suspension rotor and new type impeller.The cone impeller lean backwards,the blending quantity is big and the pressure head is small,the advantages are:simple structure and low energy consumption.Inside the impeller,there is air distributor,which distributes air into most parts of impeller evenly.
In the flotation machine, the slurry after the addition of the chemical treatment is stirred and aerated, so that some of the ore particles are selectively fixed on the bubbles and the surface of the slurry is scraped to form a foam product, with the other part left in the slurry, which achieves the purpose of separating minerals.
We will deliver products timely by contract.We will supply you with installation drawings,specifications and operation manual.We offer lifetime warranty and components for products.
| Model | KYF-1 | KYF-2 | KYF-3 | KYF-4 | KYF-8 | KYF-16 | KYF-24 | KYF-38 | |
| Chute Dimensions | Length（mm） | 1000 | 1300 | 1600 | 1800 | 2200 | 2800 | 3100 | 3600 |
| Width（mm） | 1000 | 1300 | 1600 | 1800 | 2200 | 2800 | 3100 | 3600 | |
| Height（mm） | 1100 | 1250 | 1400 | 1500 | 1950 | 2400 | 2900 | 3400 | |
| Single effective Weight（t） | 1.1 | 1.5 | 1.9 | 2.3 | 3.6 | 5.9 | 9.9 | 15.1 | |
| Effective cubage（m³） | 1 | 2 | 3 | 4 | 8 | 16 | 24 | 38 | |
| Production Capacity (m³/min) | 0.2-1 | 0.4-2 | 0.6-3 | 1.2-4 | 3—8 | 4—6 | 4—24 | 10—38 | |
| Main shaft motor | Model | Y132M1-6 | Y160M2-8 | Y160L-8 | Y180L-8 | Y200L-8 | Y250M-8 | Y250M-8 | Y280S-8 |
| Power（kw） | 4 | 5.5 | 7.5 | 11 | 15 | 30 | 30 | 37 | |
| Rotate speed(r/min) | 960 | 720 | 720 | 970 | 730 | 730 | 730 | 740 | |
| Diameter（mm） | 340 | 410 | 480 | 550 | 630 | 740 | 800 | 880 | |
| Height（mm） | 215 | 256 | 300 | 340 | 390 | 460 | — | 545 | |
| Rotate speed(r/min) | 281 | 247 | 219 | 200 | 175 | 160 | 150 | 138 | |
| Circular velocity(m/s) | 5 | 5.3 | 5.5 | 5.76 | 5.77 | 6.7 | 6.25 | 6.36 | |
| Loam board motor | Model | Y90S-4 | Y90S-4 | Y90L-4 | Y90L-4 | Y90L-4 | Y90L-4 | Y90L-4 | Y90L-4 |
| Power（kw） | 1.1 | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Rotate speed(r/min) | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | |
| Loam board | Rotate speed(r/min) | 18 | 18 | 16 | 16 | 16 | 16 | 16 | 16 |
| Diameter（mm） | 500 | 500 | 580 | 600 | 600 | 700 | 700 | 500 | |
| Wind pressure of fan（kpa） | ≥12.6 | ≥14.7 | ≥19.8 | ≥19.8 | ≥21.6 | ≥25.5 | ≥30.4 | ≥34.3 | |
| Max. air injection amount(m³.min) | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| Model | Effective cubage（m³） |
Production Capacity (m³/min) |
| KYF-1 | 1 | 0.2-1 |
| KYF-2 | 2 | 0.4-2 |
| KYF-3 | 3 | 0.6-3 |
| KYF-4 | 4 | 1.2-4 |
| KYF-8 | 8 | 3—8 |
| KYF-16 | 16 | 4—6 |
| KYF-24 | 24 | 4—24 |
| KYF-38 | 38 | 10—38 |
