Applied materials: various rocks, ores, granite, basalt, limestone, marble, river pebbles, cobbles, bluestone, gangue, dolomite, calcite, quartzite, etc.
The overall appearance of the mobile station is beautiful, the workmanship is exquisite, the host is equipped with the latest technology, the performance is stable and reliable, and the output is high. A large number of belt conveyors which are assembled on the trailer eliminate the need for on-site transfer and external belt conveyors, and the work site is tidy and organized; Each mobile station is equipped with a crawler plate device to ensure that the equipment arrives at the site quickly for installation and commissioning, and reduces the concrete foundation preparation time.

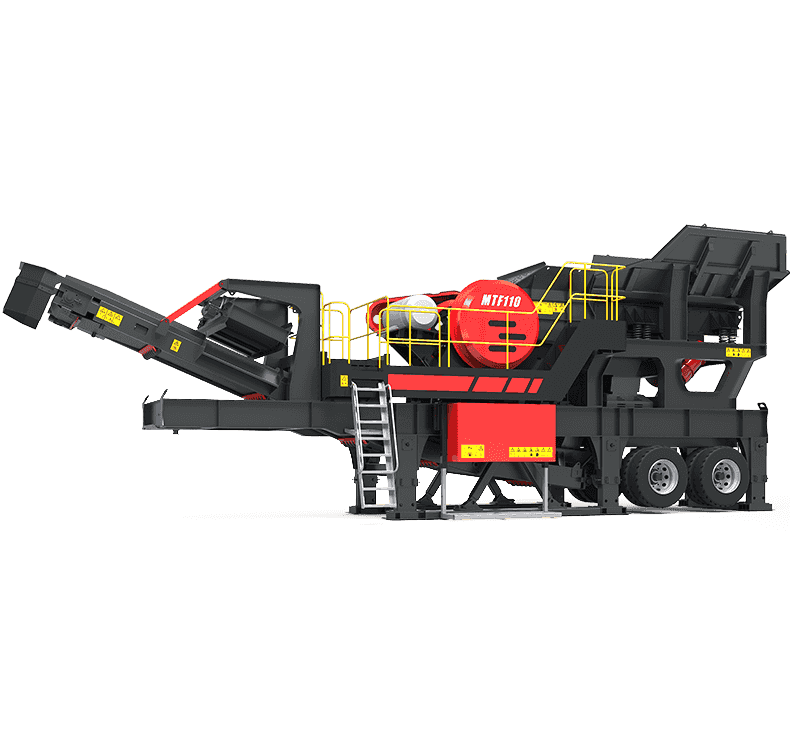

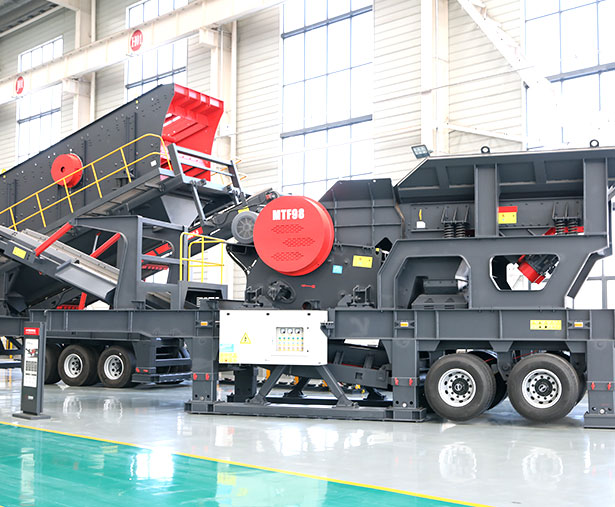

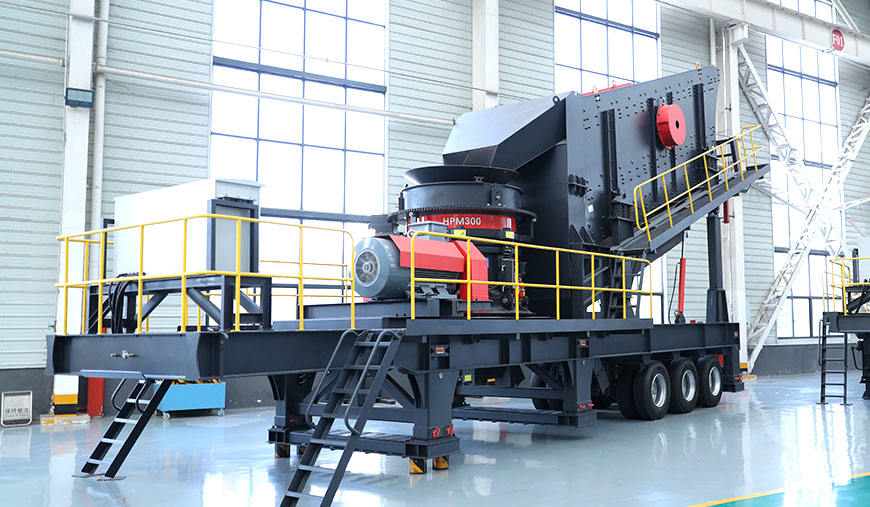

The MTF series of wheel-type mobile production lines fully cover the application fields of hard rock, soft rock, and construction waste with a processing capacity of 100-300 tons per hour.
The MTF series mobile production line adopts modular and universal design, with high structural strength and strong versatility.
The feeder adopts frequency conversion control, and the feeding amount of the feeder can be adjusted according to different conditions to give full play to the production capacity of the production line.
The main equipment on the production line are all high-performance machines produced with the latest industry technology, with high efficiency, high output, few failures, convenient operation and maintenance.
The front and back connection design of the maintenance platform is convenient for the operator to observe the equipment operation in time. Inclined up and down escalators, wider pedals, safer and more convenient than upright ladders.
We will deliver products timely by contract.We will supply you with installation drawings,specifications and operation manual.We offer lifetime warranty and components for products.
Tire Crushing Mobile Crushing Station
Tire Counterattack Breaking Mobile Crushing Station
| Model | HX938HD86 | HX1149HD98 | HX1349HD110 | HX1349HD125 |
| Transportation lenght(mm) | 12600 | 13500 | 14500 | 15200 |
| Transportation Width(mm) | 2600 | 2700 | 2800 | 2900 |
| Transportation Height(mm) | 3870 | 4200 | 4450 | 4500 |
| Maximum Lenght(mm) | 12500 | 14000 | 16100 | 16700 |
| Maximum Width(mm) | 4100 | 4500 | 5100 | 5100 |
| Maximum Height(mm) | 4100 | 4900 | 5000 | 5300 |
| Weight(t) | 39 | 57 | 55 | 65 |
| Tire Configuration | Dualaxial | Triaxial | Triaxial | Triaxial |
| Jaw Crusher | HD86 | HD98 | HD110 | HD125 |
| Maximum Feeding Size(mm) | 500 | 550 | 660 | 800 |
| Discharge opening range | 50-150 | 75-175 | 100-200 | 125-225 |
| Capacity(t/h) | 85-275 | 110-350 | 215-510 | 280-650 |
| Vibrating Feeder | ZSW380×95 | ZSW420×110 | ZSW490×130 | ZSW490×130 |
| Main Belt Conveyor | B800×8.5m | B1000×9.5m | B1000×11m | B1200×11m |
| Side-opening Belt conveyor(optional) | B500×3m | B650×3.5m | B650×4m | B650×4m |
| Gensrt(optional) | 200KW | 250KW | 270KW | 400KW |
| Iron separator(optional) | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-10 | RCYD(C)-12 |
Model HX938HD86 and HX1149HD98
| Model | HX938HD86 | HX1149HD98 |
| Transportation lenght(mm) | 12600 | 13500 |
| Transportation Width(mm) | 2600 | 2700 |
| Transportation Height(mm) | 3870 | 4200 |
| Maximum Lenght(mm) | 12500 | 14000 |
| Maximum Width(mm) | 4100 | 4500 |
| Maximum Height(mm) | 4100 | 4900 |
| Weight(t) | 39 | 57 |
| tIRE Configuration | Dualaxial | Dualaxial |
| Jaw Crusher | HD86 | HD98 |
| Maximum Feeding Size(mm) | 500 | 550 |
| Discharge opening range | 50-150 | 75-175 |
| Capacity(t/h) | 85-275 | 110-350 |
| Vibrating Feeder | ZSW380×95 | ZSW420×110 |
| Main Belt Conveyor | B800×8.5m | B1000×9.5m |
| Side-opening Belt conveyor(optional) | B500×3m | B650×3.5m |
| Gensrt(optional) | 200KW | 250KW |
| Iron separator(optional) | RCYD(C)-8 | RCYD(C)-10 |
Model HX1349HD110 and HX1349HD125
| Model | HX1349HD110 | HX1349HD125 |
| Transportation lenght(mm) | 14500 | 15200 |
| Transportation Width(mm) | 2800 | 2900 |
| Transportation Height(mm) | 4450 | 4500 |
| Maximum Lenght(mm) | 16100 | 16700 |
| Maximum Width(mm) | 5100 | 5100 |
| Maximum Height(mm) | 5000 | 5300 |
| Weight(t) | 55 | 65 |
| Tire Configuration | Dualaxial | Dualaxial |
| Jaw Crusher | HD110 | HD125 |
| Maximum Feeding Size(mm) | 660 | 800 |
| Discharge opening range | 100-200 | 125-225 |
| Capacity(t/h) | 215-510 | 280-650 |
| Vibrating Feeder | ZSW490×130 | ZSW490×130 |
| Main Belt Conveyor | B1000×11m | B1200×11m |
| Side-opening Belt conveyor(optional) | B650×4m | B650×4m |
| Gensrt(optional) | 270KW | 400KW |
| Iron separator(optional) | RCYD(C)-10 | RCYD(C)-12 |
| Model | HX938F1210 | HX938F1214 | HX1149F1315 | HX938F1110 | HX1349F1315 |
| Transportation lenght(mm) | 12000 | 12000 | 13900 | 15450 | 15450 |
| Transportation Width(mm) | 2550 | 2550 | 2900 | 2950 | 2950 |
| Transportation Height(mm) | 3900 | 3900 | 4450 | 4500 | 4500 |
| Maximum Lenght(mm) | 12500 | 12500 | 13900 | 15450 | 15450 |
| Maximum Width(mm) | 3250 | 3260 | 3250 | 3250 | 3250 |
| Maximum Height(mm) | 5100 | 5200 | 5200 | 5200 | 5200 |
| Weight(t) | 39 | 44 | 54 | 62 | 62 |
| Impact crusher | PE-1210 | PE-1214 | PF-1315 | HD1110 | HD1315 |
| Maximum Feeding Size(mm) | 350 | 350 | 500 | 400 | 700 |
| Capacity(t/h) | 70-130 | 100-180 | 130-250 | 112 | 280 |
| Vibrating Feeder | ZSW950×3800 | ZSW950×3800 | ZSW110×4900 | ZSW130×4900 | ZSW130×4900 |
| Main Belt Conveyor | B800×8.5M | B800×8.5M | B1000×9.5M | B800×11M | B1200×11M |
| Side-opening Belt conveyor(optional) | B500×3.2m | B500×3.2m | B650×4m | B650×4m | B650×4m |
| Gensrt(optional) | 320KW | 320KW | 400KW | 320KW | 440KW |
| Iron separator(optional) | RCYD(C)-8 | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-8 | RCYD(C)-12 |
Model HX938F1210 and HX938F1214 and HX1149F1315
| Model | HX938F1210 | HX938F1214 | HX1149F1315 |
| Transportation lenght(mm) | 12000 | 12000 | 13900 |
| Transportation Width(mm) | 2550 | 2550 | 2900 |
| Transportation Height(mm) | 3900 | 3900 | 4450 |
| Maximum Lenght(mm) | 12500 | 12500 | 13900 |
| Maximum Width(mm) | 3250 | 3260 | 3250 |
| Maximum Height(mm) | 5100 | 5200 | 5200 |
| Weight(t) | 39 | 44 | 54 |
| Impact crusher | PE-1210 | PE-1214 | PF-1315 |
| Maximum Feeding Size(mm) | 350 | 350 | 500 |
| Capacity(t/h) | 70-130 | 100-180 | 130-250 |
| Vibrating Feeder | ZSW950×3800 | ZSW950×3800 | ZSW110×4900 |
| Main Belt Conveyor | B800×8.5M | B800×8.5M | B1000×9.5M |
| Side-opening Belt conveyor(optional) | B500×3.2m | B500×3.2m | B650×4m |
| Gensrt(optional) | 320KW | 320KW | 400KW |
| iron separator(optional) | RCYD(C)-8 | RCYD(C)-8 | RCYD(C)-10 |
Model HX938F1110 and HX1349F1315
| Model | HX938F1110 | HX1349F1315 |
| Transportation lenght(mm) | 15450 | 15450 |
| Transportation Width(mm) | 2950 | 2950 |
| Transportation Height(mm) | 4500 | 4500 |
| Maximum Lenght(mm) | 15450 | 15450 |
| Maximum Width(mm) | 3250 | 3250 |
| Maximum Height(mm) | 5200 | 5200 |
| Weight(t) | 62 | 62 |
| Impact crusher | HD1110 | HD1315 |
| Maximum Feeding Size(mm) | 400 | 700 |
| Capacity(t/h) | 112 | 280 |
| Vibrating Feeder | ZSW130×4900 | ZSW130×4900 |
| Main Belt Conveyor | B800×11M | B1200×11M |
| Side-opening Belt conveyor(optional) | B650×4m | B650×4m |
| Gensrt(optional) | 320KW | 440KW |
| Iron separator(optional) | RCYD(C)-8 | RCYD(C)-12 |
