Applied materials: various rocks, ores, granite, basalt, limestone, marble, river pebbles, cobbles, bluestone, gangue, dolomite, calcite, quartzite, etc.
The heavy hammer crusher is a kind of hammer crusher with quite advanced technique at the moment in the industry, which can realize one-time molding and be of high efficiency, energy conservation, and environmental protection. According to the requirements, the fineness and shape of the final product can be adjusted. It is specially applied to highway, construction, mining, metallurgy, building material, etc. It is applied to crush limestone and the medium-hardness materials. It doesn't need the secondary crushing process, which can decrease the cost by about 40% and consume less energy and need less investment.

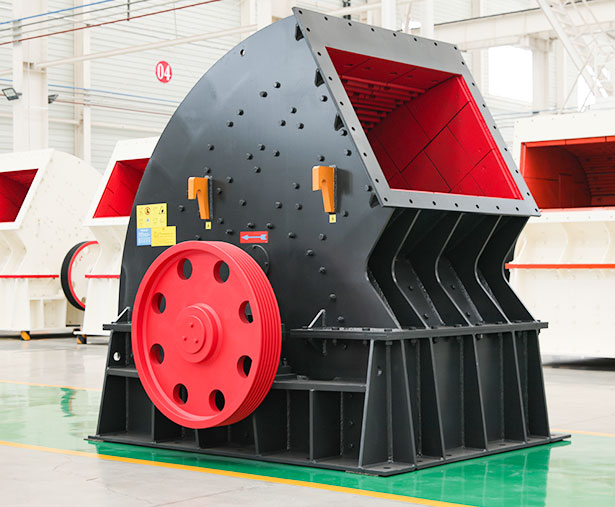

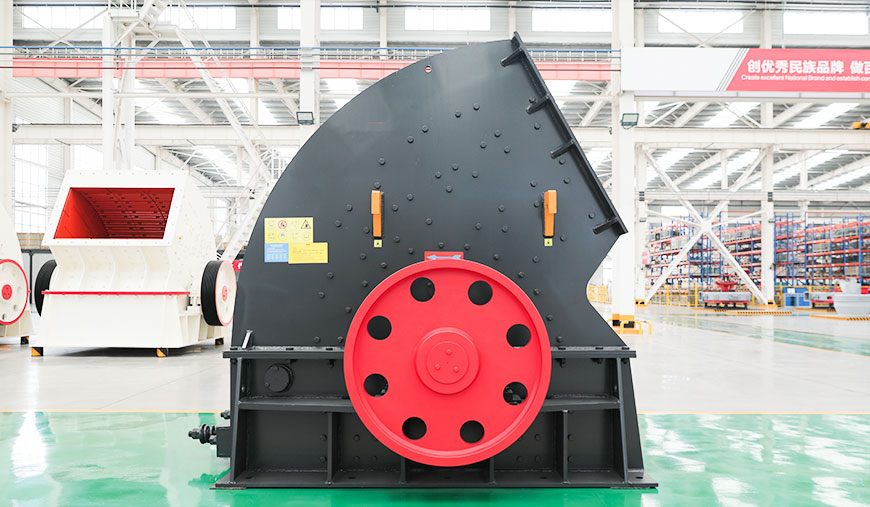

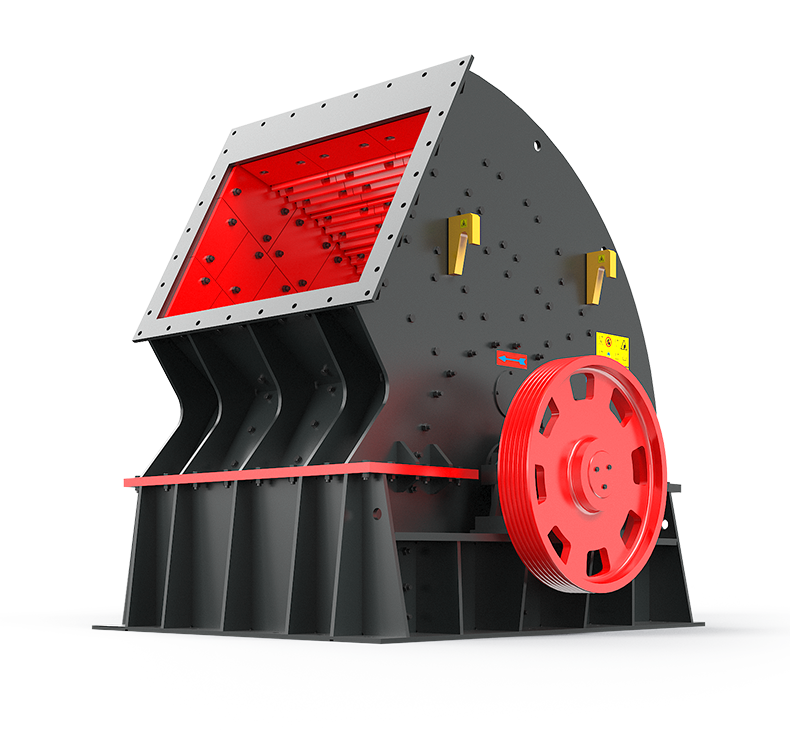

The PCZ Heavy Hammer Crushers are available in various specifications with coarse, medium and fine crushing. The finished products can be adjusted according to customer needs. It is especially suitable for large-scale engineering materials such as highways and buildings. This machine removes the primary crushing process of the jaw crusher and becomes a new type of crushing machine completing the crushing work at once for large and small materials. The output is large, the efficiency is high, the power is small, the manpower and material resources are saved, and the crushing cost of the material is reduced. The crushed stone of this machine is not only full-scale, but also uniform and clear. It is an alternative to the old jaw crusher and the hammer crusher.
Big crushing ratio, short flow process, less land occupation, less equipment, Easy maintenance;
PCZ Heavy hammer crushers,shape up by single crushing without second time, to reduce the cost by around 40%, which ensure energy and investment saving.
We will deliver products timely by contract.We will supply you with installation drawings,specifications and operation manual.We offer lifetime warranty and components for products.
| Model | Rotor diameter×length (mm) | Feed Opening Length×width(mm) | Feeding Size (mm) | Processing Capacity(t/h) | Power (kw) | Dimensions L×W×H (mm) |
| PCZ1308 | Φ1330×790 | 870×780 | ≤380 | 60-160 | 132 | 2880×2130×2390 |
| PCZ1410 | Φ1400×1000 | 1060×740 | ≤450 | 80-210 | 2×90(160) | 2830×2100×2485 |
| PCZ1610 | Φ1600×1000 | 1090×930 | ≤480 | 100-230 | 2×132 | 3370×2415×2750 |
| PCZ1612 | Φ1600×1200 | 1340×1140 | ≤500 | 120-350 | 2×160 | 3370×2613×2750 |
| PCZ1615 | Φ1600×1500 | 1570×1140 | ≤550 | 200-550 | 2×200 | 3370×2925×2750 |
| PCZ1716 | Φ1700×1600 | 1420×1200 | ≤600 | 400-850 | 2×250 | 3520×3000×3210 |
| PCZ1720 | Φ1700×2000 | 2030×1200 | ≤650 | 500-1000 | 2×400 | 3670×3390×3330 |
| PCZ1920 | Φ1900×2000 | 1980×1210 | ≤750 | 800-1500 | 2×500 | 4490×3910×3600 |
| PCZ2225 | Φ2200×2500 | 2530×1610 | ≤1000 | 1500-3000 | 1250 | 4890×5010×4560 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Feeding Size (mm) | Processing Capacity(t/h) |
| PCZ1308 | ≤380 | 60-160 |
| PCZ1410 | ≤450 | 80-210 |
| PCZ1610 | ≤480 | 100-230 |
| PCZ1612 | ≤500 | 120-350 |
| PCZ1615 | ≤550 | 200-550 |
| PCZ1716 | ≤600 | 400-850 |
| PCZ1720 | ≤650 | 500-1000 |
| PCZ1920 | ≤750 | 800-1500 |
| PCZ2225 | ≤1000 | 1500-3000 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
