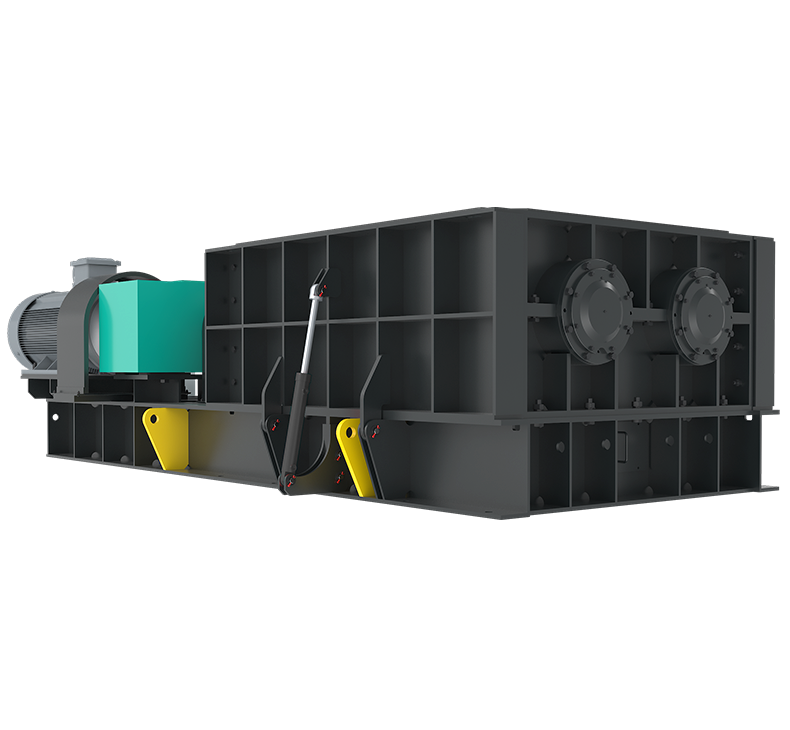

PMA/B Series High-efficiency Tooth Roller Crusher-118 Technology

Production Introduction

This equipment is a crusher with a new crushing mechanism and excellent structure. It can not only crush large pieces of materials but also discharge materials smaller than the discharge port without crushing. It has the dual functions of crushing and grading. It is suitable for brittle materials with a compressive strength of less than or equal to 150MP.

The Main Benefits and Advantages

Compared with other types of crushers, this series of crusher has many advantages such as big crushing ratio, low noise, low vibration, low energy consumption, small coverage size, simple and convenient maintenance.

This machine adopts mechanical, equipment and hydraulic protective device and interlocking device, thus effectively protecting the electromotor, crusher, and the whole system.

This product becomes the first choice of the heat-engine plant to replace import crushing equipment due to its advantages of high efficiency, energy conservancy, and environment protection.

Customer Cases

We will deliver products timely by contract.We will supply you with installation drawings,specifications and operation manual.We offer lifetime warranty and components for products.

Technical Parameter

Model	Processing Capacity(t/h)	Feeding size(mm)	Discharge size(mm)	Power(kw)	Dimensions(L×W×H)(mm)
PMA100	400	<600	<100	110	5200×2100×1350
	600			132	5350×2100×1350
	800			160	6100×2100×1350
PMA250	1000	<1000	<250	2×110	5500×2850×1400
	1500			2×132	6500×3040×1400
	2000			2×160	7200×3040×1400
PMA300	2000	<1200	<300	2×200	5780×3270×1550
	3000			2×220	6950×3740×1550
	4000			2×250	7780×3740×1550
PMB50	200	<300	<50	132	4450×2140×1350
	400			160	5440×2140×1350
	600			200	5900×2140×1350
	800			2×160	5650×2750×1480
	1000			2×200	5810×3080×1520
	1200			2×220	6680×3080×1520
	1500			2×250	7280×3080×1520
	2000			2×315	7250×3700×1630
	2500			2×355	7750×3700×1630

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Processing Capacity(t/h)	Feeding size(mm)	Discharge size(mm)
PMA100	400	<600	<100
	600
	800
PMA250	1000	<1000	<250
	1500
	2000
PMA300	2000	<1200	<300
	3000
	4000
PMB50	200	<300	<50
	400
	600
	800
	1000
	1200
	1500
	2000
	2500

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
