Application fields: Used in mining, building materials, transportation, energy, chemical and other industries.

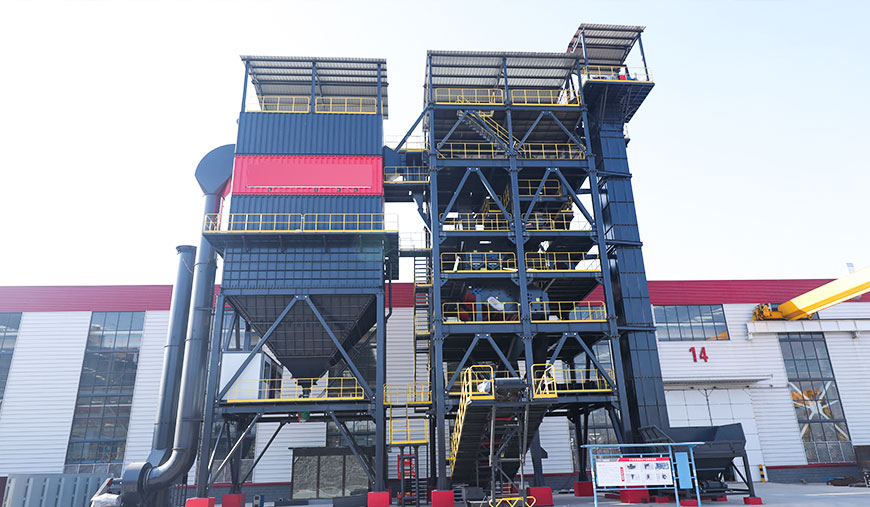

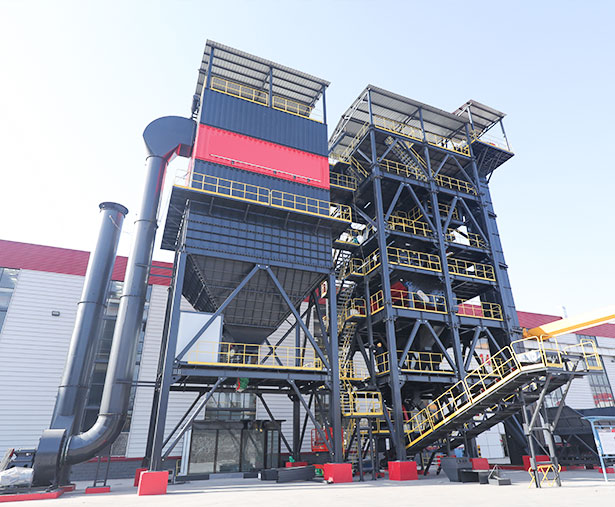

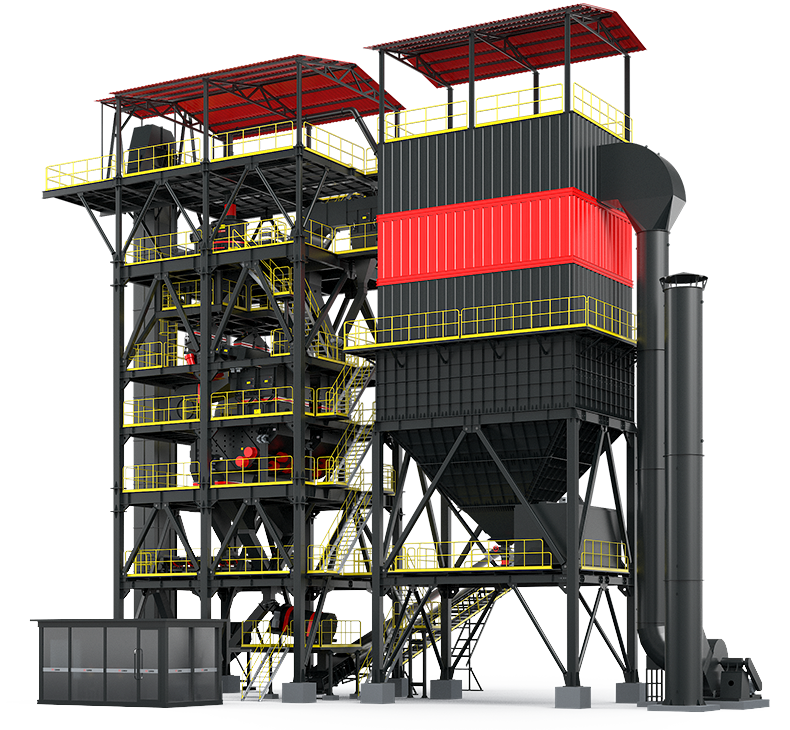

The S7 series tower type dry sand making system is based on our company's digestion and absorption of the international advanced dry sand making concept, in order to meet the high reliability and high performance requirements of customers such as high-quality sand and gravel quarries, cement plants, mixing plants, etc. The most advanced crushing, screening, dust removal, powder selection and intelligent control technology, complete sets of equipment developed and produced.
It adopts a highly intensive tower-type fully enclosed arrangement, integrating sand making, grain type optimization, stone powder control, gradation adjustment, water content control, and environmental protection treatment. It can effectively improve the particle shape of finished sand and increase the proportion of finished sand. It combines air separation, vibration screening and sedimentation technology to achieve effective separation of stone, sand and powder. Through intelligent control, the grain shape, particle size and gradation of finished sand are excellent. Help customers reduce costs and improve production efficiency. It has created new opportunities for the development of sand and gravel, commercial mixing and other industries.
Used to produce premium fine sand;
The fineness modulus of finished products is adjustable;
Adjustable powder content;
Meet the requirements of fine aggregate for construction works in all cases, especially the product raw materials with high requirements for fine aggregate such as high-grade concrete, asphalt, dry powder mortar.
We will deliver products timely by contract.We will supply you with installation drawings,specifications and operation manual.We offer lifetime warranty and components for products.
| Model | Input size（mm） | Capacity（t/h） | output of manufactured sand |
Power（KW） | Overall dimension L×W×H （M） |
|
| Sand Making | Sand and Gravel Making |
|||||
| S7M-310 | 0-30 | 100 | 300 | 3-15% | 620 | 30x8x24 |
| S7M-510 | 0-30 | 150 | 450 | 3-15% | 850 | 30x8x26 |
| S7M II-310 | 0-40 | - | 300 | 3-15% | 670 | 30x11x24 |
| S7M II-510 | 0-40 | - | 500 | 3-15% | 910 | 30x11x26 |
Raw material moisture content: mud content of feeding <1%, water content <2%
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Input size（mm） | Capacity（t/h） | output of manufactured sand |
|
| Sand Making | Sand and Gravel Making |
|||
| S7M-310 | 0-30 | 100 | 300 | 3-15% |
| S7M-510 | 0-30 | 150 | 450 | 3-15% |
| S7M II-310 | 0-40 | - | 300 | 3-15% |
| S7M II-510 | 0-40 | - | 500 | 3-15% |
Raw material moisture content: mud content of feeding <1%, water content <2%
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
