Application fields: Used in mining, building materials, transportation, energy, chemical and other industries.

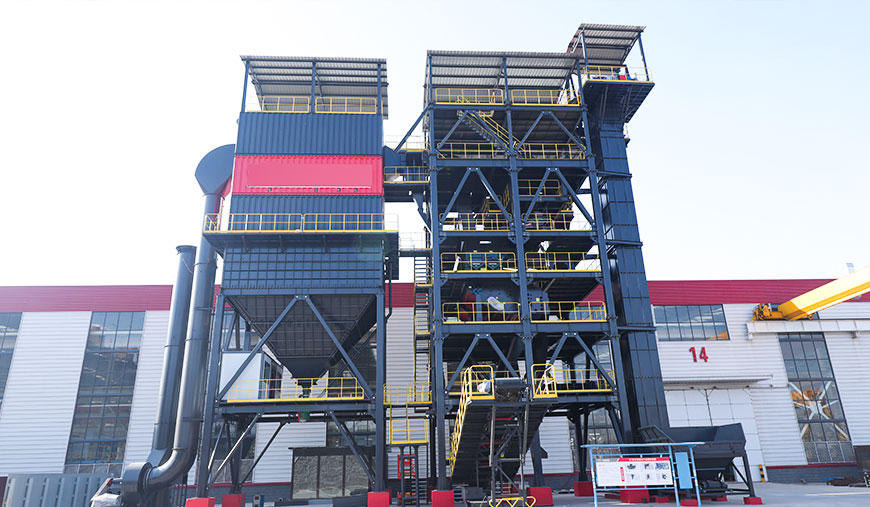

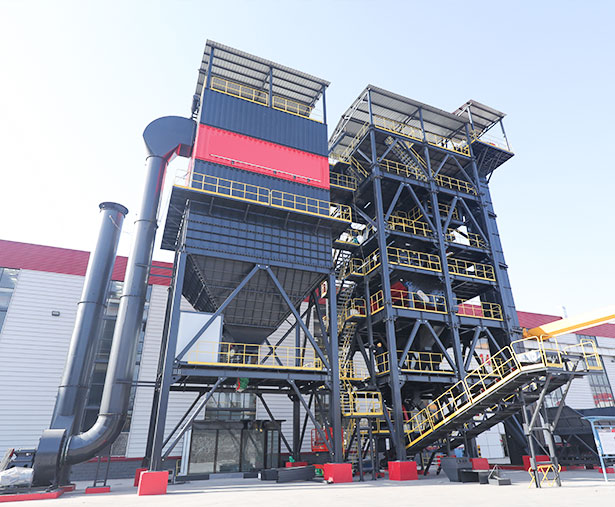

The S7M Dry Sand And Gravel Making Tower is based on our company's digestion and absorption of the international advanced dry sand making concept, in order to meet the high reliability and high performance requirements of customers such as high-quality sand and gravel quarries, cement plants, mixing plants, etc. The most advanced crushing, screening, dust removal, powder selection and intelligent control technology, complete sets of equipment developed and produced.

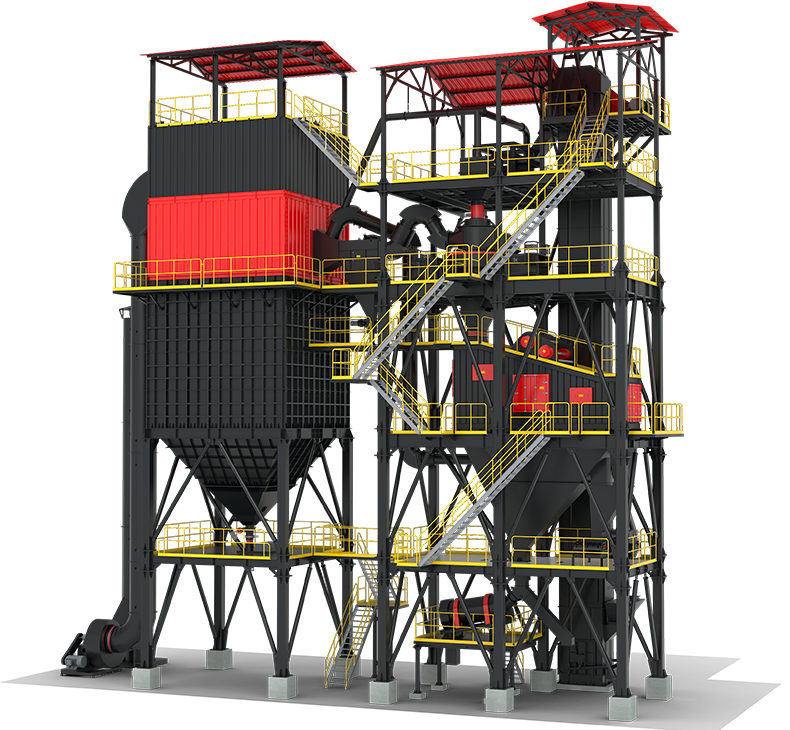

The tower sand making machine is a vertical structure, and the whole space occupies a small area.
The impact crusher used in the whole production line has a round particle shape and uniform thickness. In addition, the grading and stone powder content can be adjusted by adjusting the negative pressure and distributor settings.
The whole production process is closed without considering the problem of powder overflow. In addition, powder dust removal equipment is also installed, which can provide a double guarantee.
We will deliver products timely by contract.We will supply you with installation drawings,specifications and operation manual.We offer lifetime warranty and components for products.
| Model | Input size（mm） | Capacity（t/h） | output of manufactured sand |
Power（KW） | Overall dimension L×W×H （M） |
|
| Sand Making | Sand and Gravel Making |
|||||
| S7M-310 | 0-30 | 100 | 300 | 3-15% | 620 | 30x8x24 |
| S7M-510 | 0-30 | 150 | 450 | 3-15% | 850 | 30x8x26 |
| S7M II-310 | 0-40 | - | 300 | 3-15% | 670 | 30x11x24 |
| S7M II-510 | 0-40 | - | 500 | 3-15% | 910 | 30x11x26 |
Raw material moisture content: mud content of feeding <1%, water content <2%
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Input size（mm） | Capacity（t/h） | output of manufactured sand |
|
| Sand Making | Sand and Gravel Making |
|||
| S7M-310 | 0-30 | 100 | 300 | 3-15% |
| S7M-510 | 0-30 | 150 | 450 | 3-15% |
| S7M II-310 | 0-40 | - | 300 | 3-15% |
| S7M II-510 | 0-40 | - | 500 | 3-15% |
Raw material moisture content: mud content of feeding <1%, water content <2%
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
