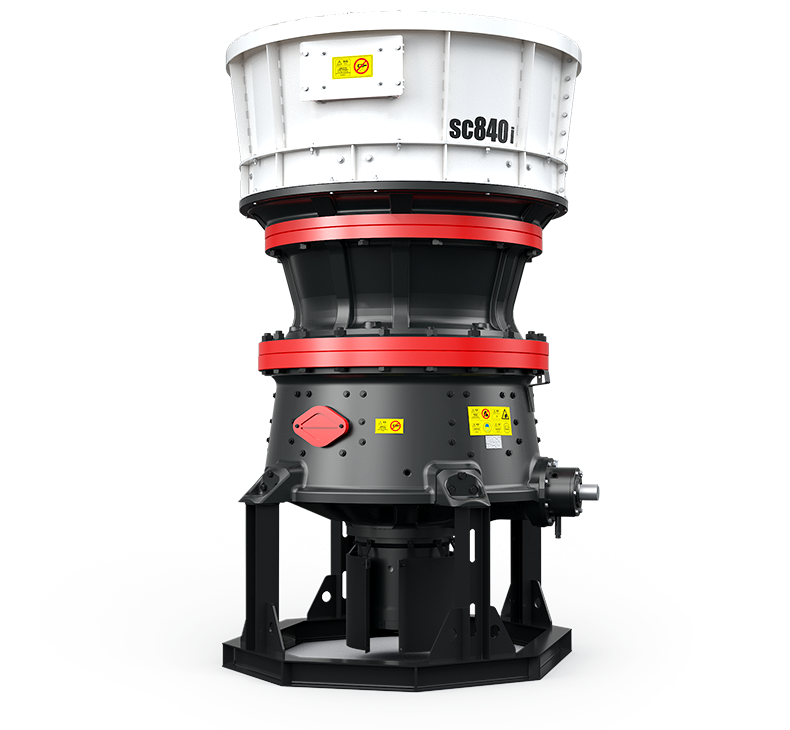

SC/H800i Series Cone Crusher-118 Technology

Production Introduction

SC/H800i series single cylinder cone crusher of 118 Technology Group is a new generation product comprehensively upgraded on the basis of SC series cone crusher according to market demand and focusing on the forefront of the times. While inheriting many advantages of SC series, this series crusher adopts a cavity design with larger eccentricity, higher rotating speed and larger crushing ratio, so as to improve throughput and yield and reduce equipment energy consumption. The equipment incorporates the most advanced Internet concept: all-weather connectivity to the Internet of Things platform, effectively improving productivity, predicting performance, and maximizing the uptime of the equipment.

Working Principle

When the single-cylinder cone crusher is working, the motor drives the small gear of the crusher, the small gear drives the large gear, and the large gear assembly drives the eccentric sleeve assembly and the main shaft assembly to revolve in the copper bushing with the theoretical vertical line as the center. The main shaft assembly can rotate in the eccentric copper sleeve with the center line of the main shaft. When the material is added to the crushing chamber, the main shaft assembly slowly rotates in the eccentric copper sleeve under the resistance of the material. The running track of the inner cone seems to swing back and forth in the crushing chamber while rotating slowly. The material is squeezed and crushed by the swinging inner cone, and the crushed material is discharged from the discharge port.

The Main Benefits and Advantages

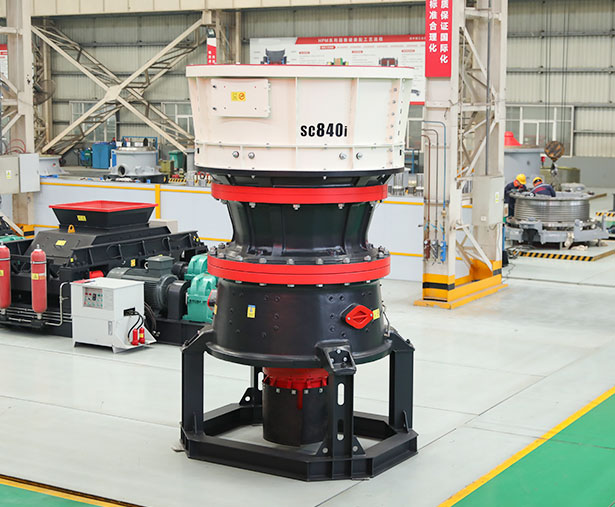

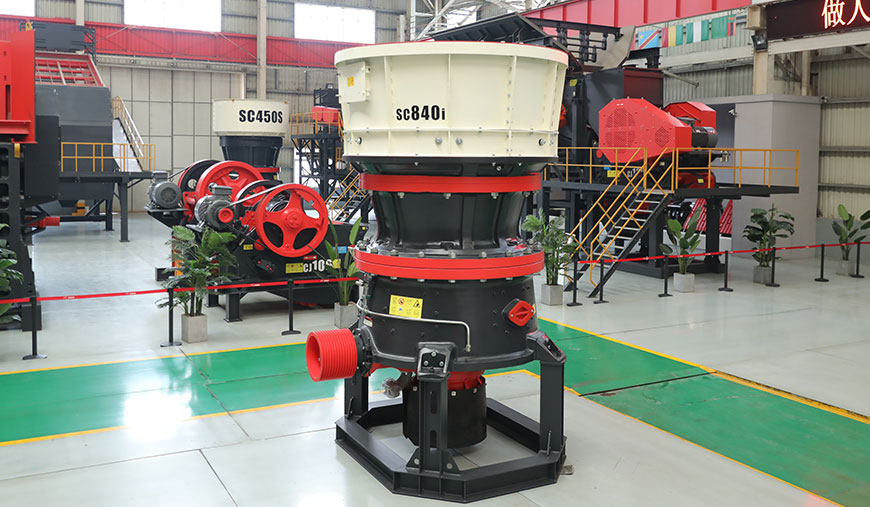

SC/H800i Series Cone Crusher

The industrial Internet of Things platform can be used to access crusher production data all weather, predictive maintenance of equipment and improve equipment utilization;

The upper and lower frame body and the main shaft are reinforced to greatly improve the reliability of the equipment;

Standard off-line filtration system can ensure all-weather lubricating oil filtration, reduce the internal wear of crusher parts, extend the service life of lubricating oil up to 5 times;

The new intelligent system can track all operational data, optimize parameters, deal with faults, and quickly complete maintenance.

Technical Parameter

Model	Cavities	Feeding Size (mm)	Maximum Feeding Size (mm)	Minimum Discharging Size (mm)	Processing Capacity (t/h)	Power (kw)
SC840i	C1	431	345	25	230-659	315
SC840i	C2	345	275	22	212-645	315
SH830i	F1	211	169	13	113-283	250
	F2	93	74	8	84-212
	F3	61	49	5	61-139
SH840i	F1	250	200	16	162-371	315
	F2	159	127	16	187-406
	F3	73	58	10	126-232
SH860i	F1	315	252	16	259-799	500
SH860i	F2	169	135	16	281-867
SH865i	F3	85	68	10	179-468
SH870i	F1	350	280	25	392-1173	630
	F2	184	147	19	351-1195
	F3	99	79	13	236-747
SH890i	F1	428	342	25	488-1670	800
	F2	302	242	22	524-1789
	F3	219	175	19	460-1677
SH895i	F4	112	90	13	291-910
SH895i	F5	89	71	10	258-839

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Cavities	Feeding Size (mm)	Processing Capacity (t/h)
SC840i	C1	431	230-659
SC840i	C2	345	212-645
SH830i	F1	211	113-283
	F2	93	84-212
	F3	61	61-139
SH840i	F1	250	162-371
	F2	159	187-406
	F3	73	126-232
SH860i	F1	315	259-799
SH860i	F2	169	281-867
SH865i	F3	85	179-468
SH870i	F1	350	392-1173
	F2	184	351-1195
	F3	99	236-747
SH890i	F1	428	488-1670
	F2	302	524-1789
	F3	219	460-1677
SH895i	F4	112	291-910
SH895i	F5	89	258-839
