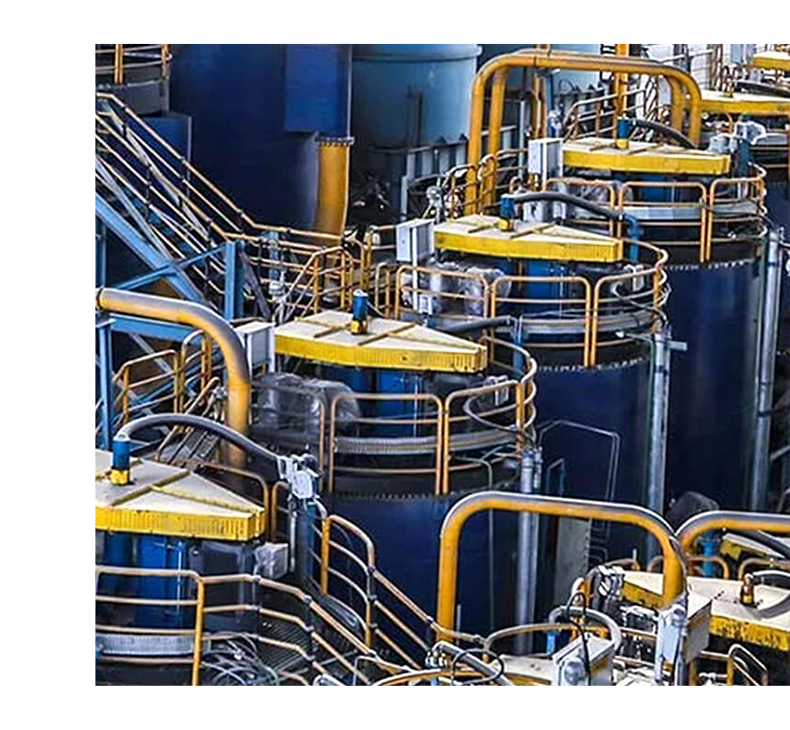

SF Flotation machine is mainly used for the selecting of non-ferrous metals like gold, copper, zinc, etc. It can also be used for coarse and fine selection of ferrous and nonmetals. It is suitable for the materials like gold ore, copper ore, quartz stone, and aluminum ore, etc.
In the flotation machine, the slurry after the addition of the chemical treatment is stirred and aerated, so that some of the ore particles are selectively fixed on the bubbles and the surface of the slurry is scraped to form a foam product, with the other part left in the slurry, which achieves the purpose of separating minerals.
1. High flotation efficiency and low energy consumption.
2. No running parts in flotation machine, easy maintenance and overhaul, and long service life of the wearing parts.
3. Mechanical mixing, simple operation and control, high degree of automation.
In the process of flotation, the pulp after treatment by adding agentia, with stirring and air inflation, some of the mineral particles are selectively fixed on the bubble, and float to the surface of the pulp, being scraped to form foam product. The rest is remained in the pulp to achieve the purpose of separating the minerals.
We will deliver products timely by contract.We will supply you with installation drawings,specifications and operation manual.We offer lifetime warranty and components for products.
| Category | Model | Effective Volume (m³) |
Processing capacity | Main shaft | Loam board | Dimensions (LxWxH) (M) |
||
| Power (kw) |
Rotate speed (r/min) |
Rotate speed (r/min) |
Power (kw) |
|||||
| XJK type flotation machine | XJK-0.35 | 0.35 | 0.18-0.4 | 1.5 | 483 | 25 | 1.1 | 0.7×0.7×0.7 |
| XJK-0.62 | 0.62 | 0.3-0.9 | 3 | 400 | 25 | 1.1 | 0.9×0.82×0.85 | |
| XJK-1.1 | 1.1 | 0.6-1.6 | 5.5 | 330 | 25 | 1.1 | 1.1×1.1×1.0 | |
| XJK-2.8 | 2.8 | 1.5-3.5 | 11 | 280 | 25 | 1.1 | 1.75×1.6×1.1 | |
| XJK-5.8 | 5.8 | 5-7 | 22 | 240 | 25 | 1.5 | 2.2×2.2×1.2 | |
| SF type flotation machine | SF-0.37 | 0.37 | 0.2-0.4 | 1.5 | 386 | 25 | 1.1 | 0.7×0.7×0.75 |
| SF-0.7 | 0.7 | 0.3-0.9 | 3 | 400 | 25 | 1.1 | 0.9×0.82×0.95 | |
| SF-1.2 | 1.2 | 0.6-1.6 | 5.5 | 330 | 25 | 1.1 | 1.1×1.1×1.1 | |
| SF-2.8 | 2.8 | 1.5-3.5 | 11 | 268 | 25 | 1.1 | 1.75×1.6×1.15 | |
| SF-4 | 4 | 2-4 | 15 | 220 | 25 | 1.5 | 1.85×2.05×1.2 | |
| SF-8 | 8 | 4-8 | 30 | 191 | 25 | 1.5 | 2.2×2.9×1.4 | |
| SF-10 | 10 | 5-10 | 30 | 191 | 25 | 1.5 | 2.2×2.9×1.7 | |
| SF-20 | 20 | 5-20 | 30×2 | 191 | 25 | 1.5 | 2.85×3.8×2.0 | |
| JJF type flotation machine | JJF-2 | 2 | 1-3 | 7.5 | 443 | 25 | 1.5 | 1.4×1.4×1.1 |
| JJF-4 | 4 | 2-4 | 11 | 305 | 25 | 1.5 | 1.6×2.15×1.25 | |
| JJF-8 | 8 | 4-8 | 22 | 233 | 25 | 1.5 | 2.2×2.9×1.4 | |
| JJF-10 | 10 | 5-10 | 22 | 233 | 25 | 1.5 | 2.2×2.9×1.7 | |
| JJF-16 | 16 | 5-16 | 30 | 180 | 25 | 1.5 | 2.85×3.8×1.7 | |
| JJF-20 | 20 | 5-20 | 37 | 180 | 25 | 1.5 | 2.9×3.8×2.0 | |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Effective Volume (m³) |
Processing capacity |
| XJK-0.35 | 0.35 | 0.18-0.4 |
| XJK-0.62 | 0.62 | 0.3-0.9 |
| XJK-1.1 | 1.1 | 0.6-1.6 |
| XJK-2.8 | 2.8 | 1.5-3.5 |
| XJK-5.8 | 5.8 | 5-7 |
| SF-0.37 | 0.37 | 0.2-0.4 |
| SF-0.7 | 0.7 | 0.3-0.9 |
| SF-1.2 | 1.2 | 0.6-1.6 |
| SF-2.8 | 2.8 | 1.5-3.5 |
| SF-4 | 4 | 2-4 |
| SF-8 | 8 | 4-8 |
| SF-10 | 10 | 5-10 |
| SF-20 | 20 | 5-20 |
| JJF-2 | 2 | 1-3 |
| JJF-4 | 4 | 2-4 |
| JJF-8 | 8 | 4-8 |
| JJF-10 | 10 | 5-10 |
| JJF-16 | 16 | 5-16 |
| JJF-20 | 20 | 5-20 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
