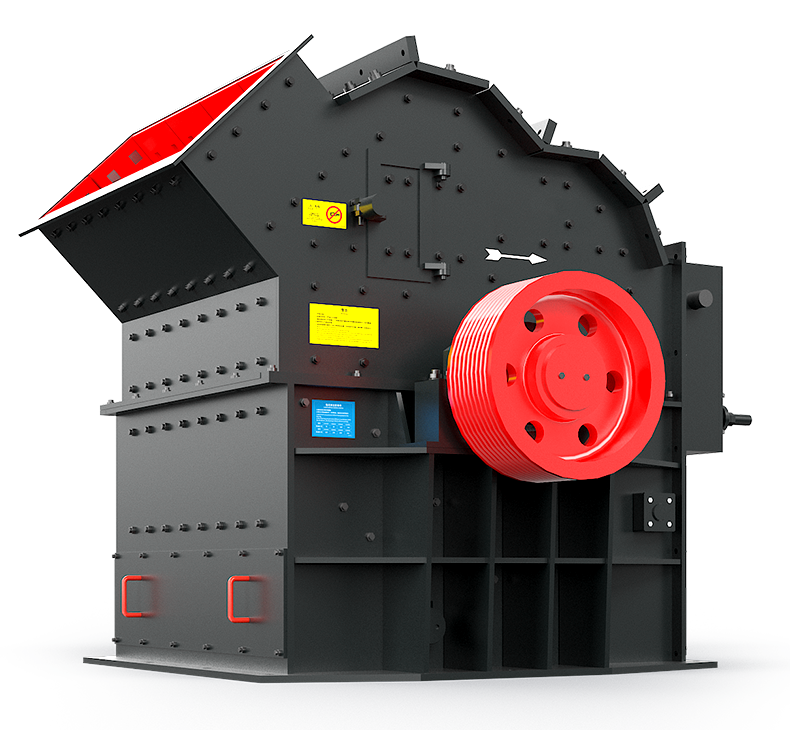

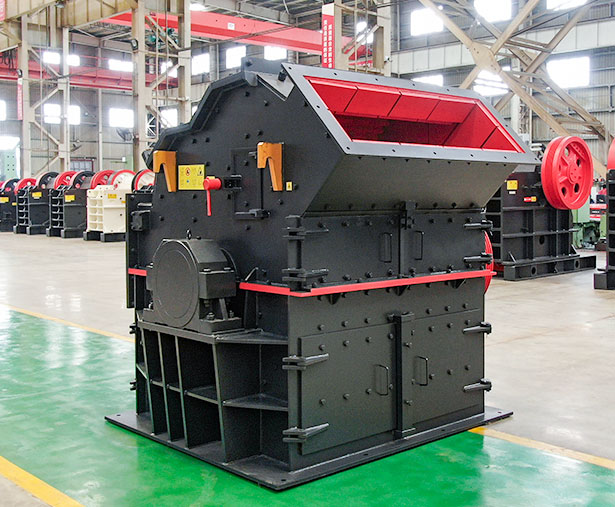

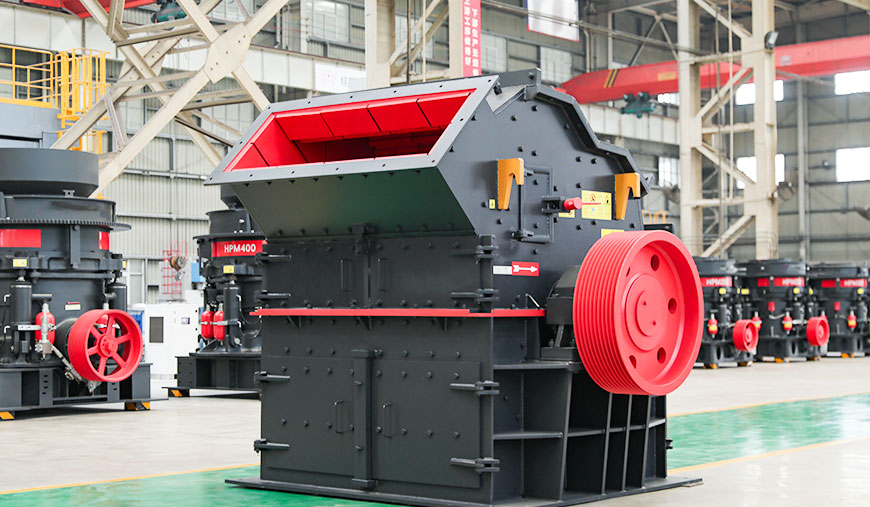

Tertiary Impact Crusher, also known as fine crusher, is a new fine crusher. The machine has a wide range of uses and its performance has reached the international excellent level. It is an effective, practical and reliable gravel machine, especially suitable for making abrasive, refractory materials, cement, quartz sand, steel sand and other hard and brittle materials. The fine crusher is an efficient and energy-saving gravel sand making equipment, which is 50% more energy efficient than traditional fine crusher. It is the world's most advanced fine crushing machine.
1. High efficiency
The design of the grid plate and the hard extrusion are used to make the fine crusher’s efficiency greatly improved.
2. High operating rate and low power consumption
High line speed, fast operation; power saving and energy consumption are better than traditional roller pressing machines
3. Long service life of the quick-wear parts
Adopting the wear-resistant material, its parts are endurable
When the fine crusher is working, the third-generation sand making machine is driven by the motor, the rotor rotates at high speed, the material enters the first crushing cavity and hits the board hammer on the rotor, then enters the second fine crushing cavity to be crushed, and finally is discharged from the outlet.
We will deliver products timely by contract.We will supply you with installation drawings,specifications and operation manual.We offer lifetime warranty and components for products.
| Model | PXJ0804 | PXJ0806 | PXJ0808 | PXJ1010 | PXJ1212 | PXJ1414 | PXJ1616 | PXJ1818 |
| Rotor diameter×width(mm) | 800×400 | 800×600 | 800×800 | 1010×1010 | 1200×1200 | 1400×1400 | 1600×1600 | 1800×1800 |
| Limestone(t/h) | 5-45 | 7-55 | 10-65 | 15-75 | 20-110 | 25-150 | 30-200 | 40-260 |
| Power(kW) | 37 | 45 | 45 | 55 | 110 | 160 | 250 | 315 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Rotor diameter×width(mm) | Limestone(t/h) | Power(kW) |
| PXJ0804 | 800×400 | 5-45 | 37 |
| PXJ0806 | 800×600 | 7-55 | 45 |
| PXJ0808 | 800×800 | 10-65 | 45 |
| PXJ1010 | 1010×1010 | 15-75 | 55 |
| PXJ1212 | 1200×1200 | 20-110 | 110 |
| PXJ1414 | 1400×1400 | 25-150 | 160 |
| PXJ1616 | 1600×1600 | 30-200 | 250 |
| PXJ1818 | 1800×1800 | 40-260 | 315 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
