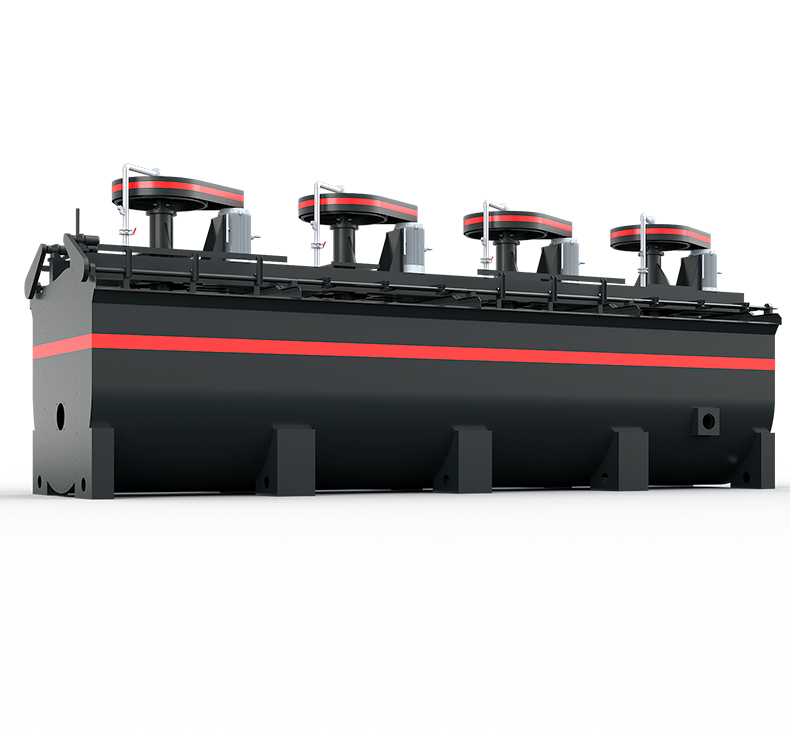

When the flotation machine is working,as the impeller rotates,the slurry in the tank is sucked from all sides through the bottom of the tank from the lower end of the impeller to between the impeller blades.At the same time,the low-pressure air supplied by the blower passes through the hollow shaft and the air distributor of the impeller.Get into it too.After the slurry and air are fully mixed between the blades,they are pushed diagonally upward from the periphery of the upper half of the impeller,and then enter the entire tank after being stabilized and oriented by the stator.The bubbles nse to the foam stable zone,forming an enrichment process
In the flotation machine, the slurry after the addition of the chemical treatment is stirred and aerated, so that some of the ore particles are selectively fixed on the bubbles and the surface of the slurry is scraped to form a foam product, with the other part left in the slurry, which achieves the purpose of separating minerals.
We will deliver products timely by contract.We will supply you with installation drawings,specifications and operation manual.We offer lifetime warranty and components for products.
| Model | XCF-1 | XCF-2 | XCF-3 | XCF-4 | XCF-8 | XCF-16 | XCF-24 | XCF-38 | |
| Dimensions | Length（mm） | 1000 | 1300 | 1600 | 1800 | 2200 | 2800 | 3100 | 3600 |
| Width（mm） | 1000 | 1300 | 1600 | 1800 | 2200 | 2800 | 3100 | 3600 | |
| Height（mm） | 1100 | 1250 | 1400 | 1500 | 1950 | 2400 | 10819 | 3400 | |
| Single Effective Weight（t） | 1.2 | 1.7 | 2.3 | 2.7 | 3.9 | 6.6 | 8.0 | 16.8 | |
| Effective cubage（m³） | 1 | 2 | 3 | 4 | 8 | 16 | 24 | 38 | |
| Production Capacity (m³/min) | 0.2—1 | 0.4—2 | 0.6—3 | 1.2—4 | 3—8 | 4—16 | 4—24 | 10—38 | |
| Main shaft motor | Model | Y132M2-6 | Y160M-6 | Y160L-6 | Y180L-6 | Y200L2-6 | Y280S-8 | Y280S-8 | Y280S-6 |
| Power（kw） | 5.5 | 7.5 | 11 | 15 | 22 | 37 | 37 | 45 | |
| Impeller | Rotate speed(r/min) | 960 | 970 | 970 | 970 | 970 | 740 | 740 | 980 |
| Diameter（mm） | 400 | 460 | 540 | 620 | 720 | 860 | 950 | — | |
| Height（mm） | 155 | 175 | 207 | 247 | 321 | 349 | — | — | |
| Rotate speed(r/min) | 358 | 331 | 266 | 215 | 185 | 160 | 153 | — | |
| Circular velocity(m/s) | 7.5 | 7.5 | 7.5 | 7 | 6.97 | 7.6 | 7.6 | 7.4 | |
| loam board motor | Model | Y90S-4 | Y90S-4 | Y90L-4 | Y90L-4 | Y90L-4 | Y90L-4 | Y90L-4 | Y90L-4 |
| Power（kw） | 1.1 | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Rotate speed(r/min) | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | |
| loam board | Rotate speed(r/min) | 18 | 18 | 16 | 16 | 16 | 16 | 16 | 16 |
| Diameter（mm） | 500 | 500 | 580 | 600 | 600 | 700 | 700 | 700 | |
| Wind pressure of fan （kpa） | ≥12.6 | ≥14.7 | ≥19.8 | ≥19.8 | ≥21.6 | ≥25.5 | ≥30.4 | ≥34.3 | |
| Max. air injection amount(m³.min) | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| Model | Effective cubage（m³） |
Production Capacity (m³/min) |
| XCF-1 | 1 | 0.2—1 |
| XCF-2 | 2 | 0.4—2 |
| XCF-3 | 3 | 0.6—3 |
| XCF-4 | 4 | 1.2—4 |
| XCF-8 | 8 | 3—8 |
| XCF-16 | 16 | 4—16 |
| XCF-24 | 24 | 4—24 |
| XCF-38 | 38 | 10—38 |
